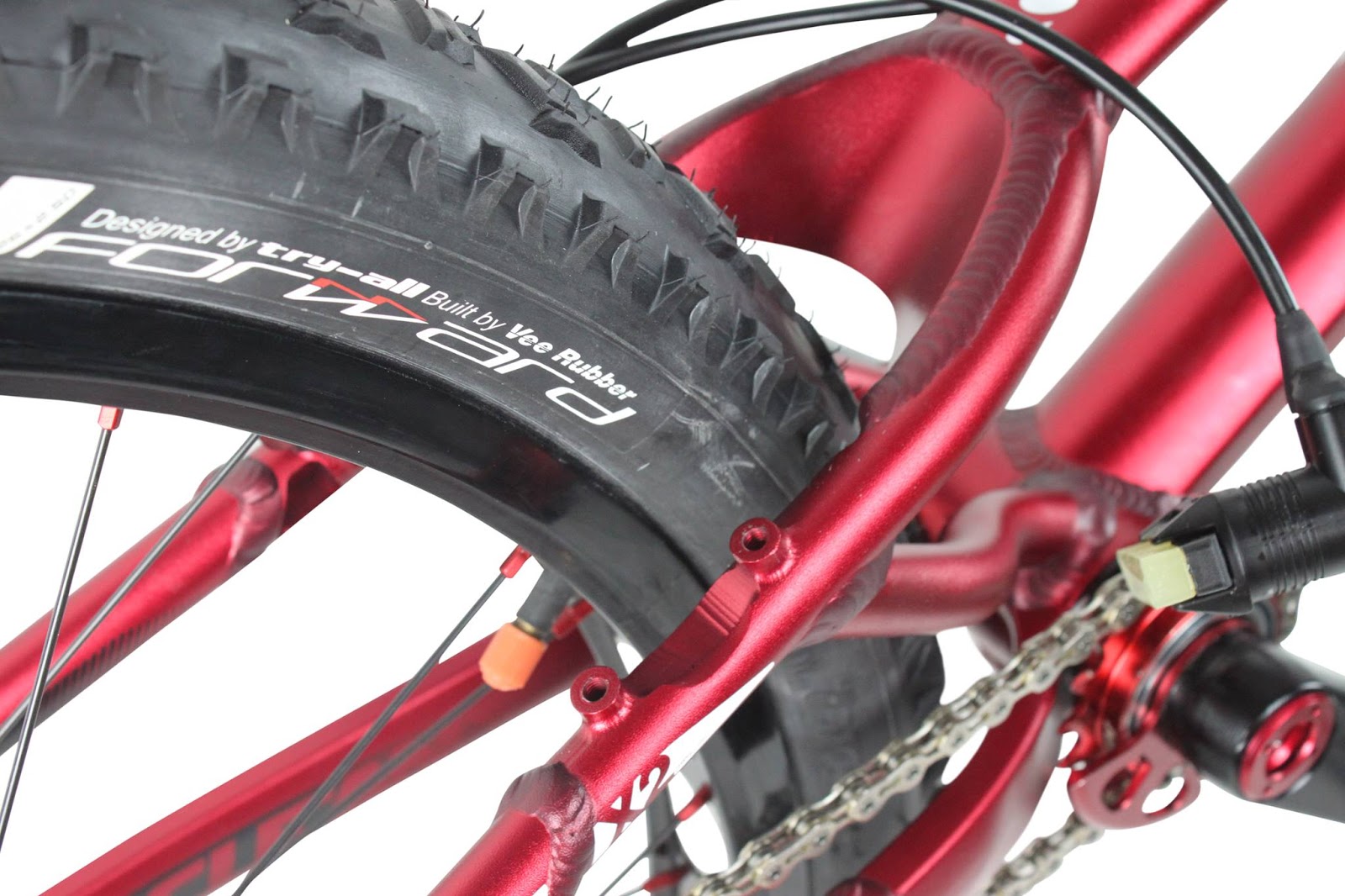

New crankset BB30 3P included, improves stiffness and weight to the maximum and, according to Clean Trials, “the maintenance is so much easier than before.” With special dropouts and the new chain tensioner allow the rear wheel to be always in the same position, improving the brake performance.
Tapered headtube, being 1 1/8” in the top, and 1/5” in the bottom, improving weight and stiffness. Clean T13 levers combined with Magura cylinders. New concept: 100% integrated CNC brake mounts on tubing and new hydroformed Downtube!
Features:
- Frame: Clean X2. Aluminio 6061 T6 + 7075 T6
- Fork: Clean X2. Aluminio 7005 T6. Tapered. HS
- Handlebar: Clean ALU. 103mm total rise
- Grips: Clean Foam. Extrathin
- Stem: Clean 145x25
- Headset: Clean Tapered. Superlight. Semi integrated
- Hubs: Clean Cone Hubs
- Brakes: Clean T13 + Magura cyclinders
- Clamps: Clean Waserless + Clean X2 26"

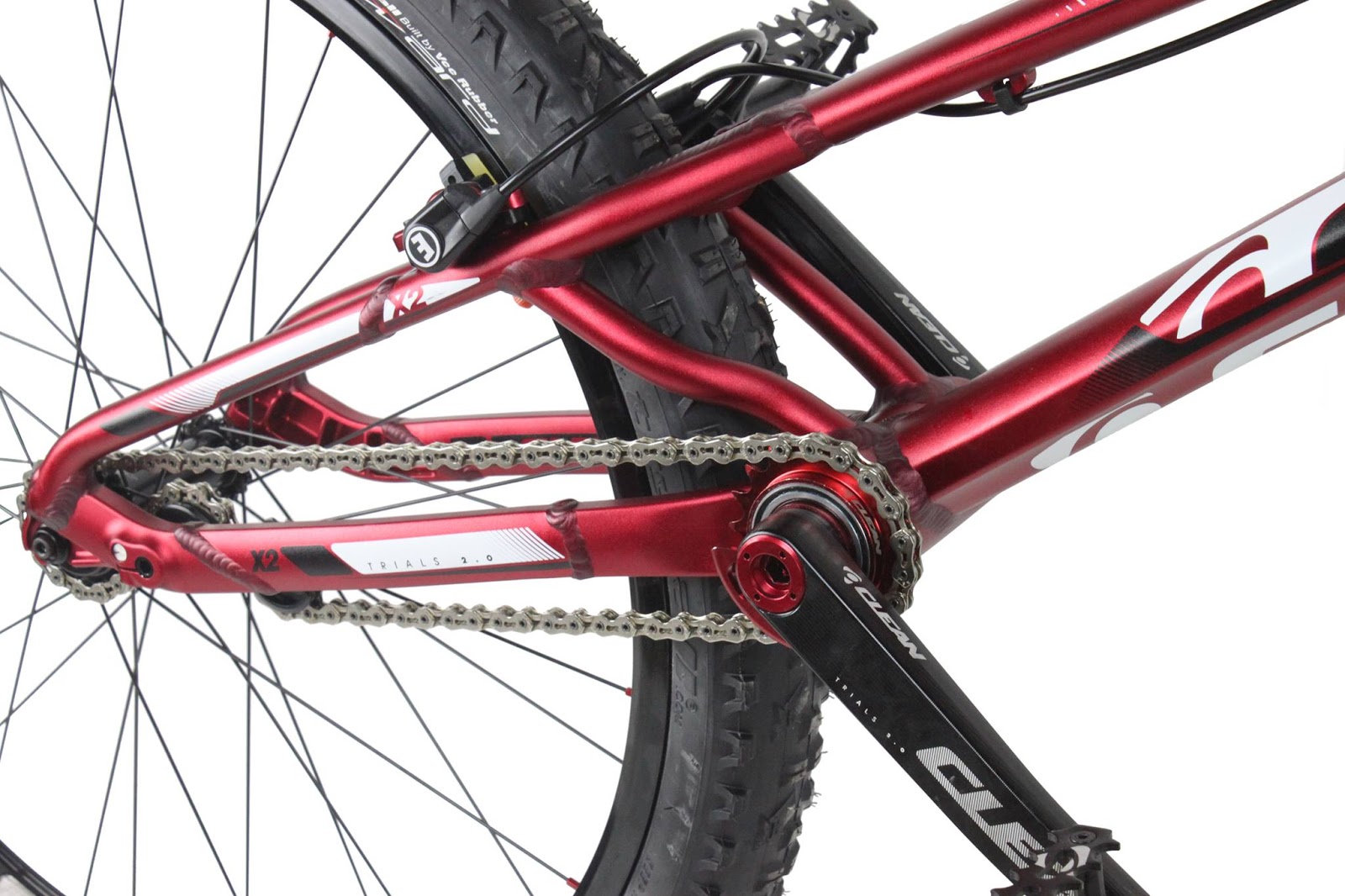

- Bottom Bracket: Clean 3P Crankset. 30mm axle. Press Fit. Full CNC. 170mm
- Pedals: Clean Single Cage
- Chain: KMC 810SL

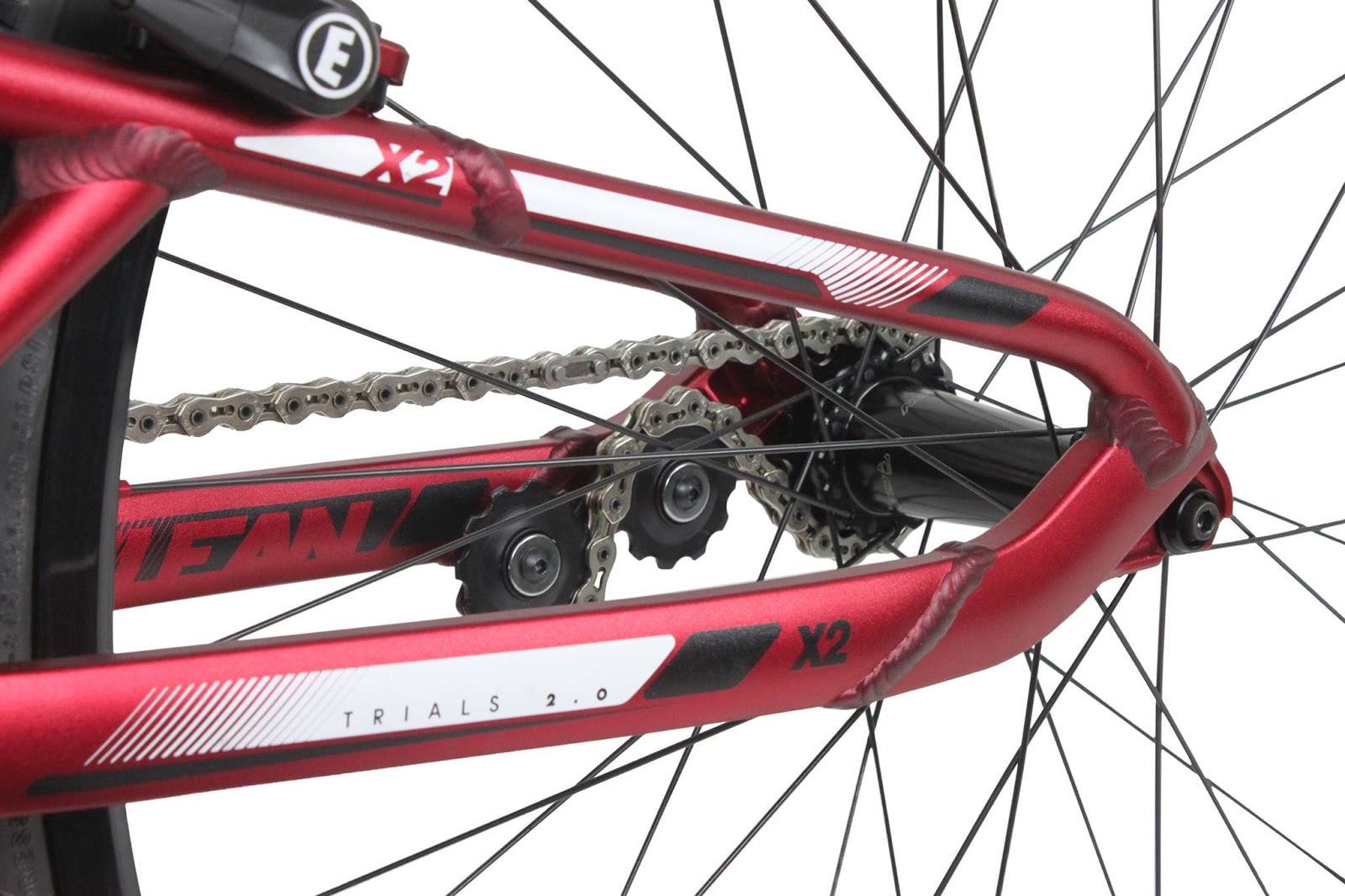

- Chain tensioner: Clean Integrated. 7075 CNC plate. 11T plastic wheels
- Rims: Clean High Profile
- Spokes: 1.8mm Black
- Nipples: 16G Aluminium Red
- Freewheel: 135.9. 18T. Shimano HG Splined interface
- Sprocket: Clean 15T
- Front tyre: Monty Pro Race
- Rear tyre: Monty Pro Race
- Front tube: Maxxis Extralight
- Rear tube: Maxxis Extralight
- Wheelbase: 1090mm
- BB high: +67mm
- Chainstay: 380mm
- Head angle: 72º
- Reach: 670mm
