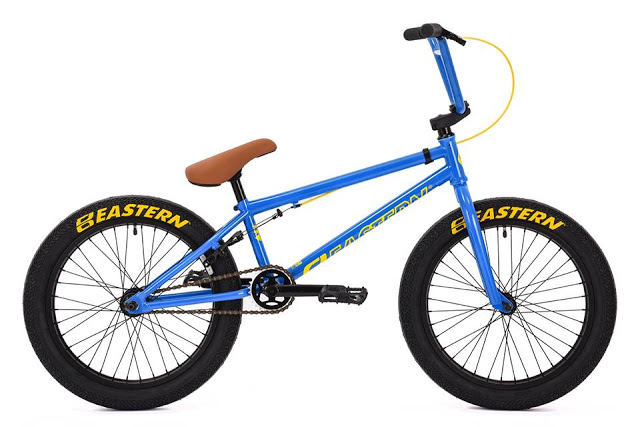

Meet the New 2018 Eastern Bikes' Nagas BMX Bike

Meet the New 2018 Eastern Bikes' Nagas BMX Bike
Eastern Bikes (USA) – Press Release: The intermediate level Eastern Nagas is a great bike for riders wanting to up their ride. Built with a full chromoly frame and fork, a sealed bearing integrated headset, sealed hubs, a 3-piece chromoly cranks, chromoly sprocket, double wall rims plus our new Facet pedals and Squealer tires.

Features:
  • Now with Full Chromoly Frame
  • Chromoly Fork
  • Sealed Hubs
  • 3 Piece Tubular Chromoly Cranks
  • Mid BB
  • Integrated Headset
  • Double Wall Front and Rear Rim
  • Eastern Riblet Grips
  • Chromoly Eastern Phorcys Sprocket
  • Pivotal Seat
  • 2.4" Eastern Squealer OEM Tires
  • Eastern Facet Pedals

Frame:
  • Nagas 20"
  • Full Chromoly Frame
  • Top Tube Size: 20.75″
  • BB: Mid
  • Headtube: Integrated
  • Chainstay Length: 13.38″
  • Clamp: Integrated with Frame
Bars:
  • Hi-Ten 8.85"
  • Upsweep/Backsweep 12⁰/1⁰
Fork:
  • Nagas 20”, - Full Chromoly
  • Fork Rake: 28mm

Specifications:
  • Headset: Integrated 45°X45° Sealed Cartridge Bearing
  • Stem: Forged Alloy Top Load Stem
  • Grip: Eastern Riblet Grips
  • Crank: 3-Piece, Tubular Heat-Treated Chromoly, Bolt for Sprocket, Pinch Bolt with 8-Splined Spindle, 170mm 31.8mm Round Arm
  • Bottom Bracket: Sealed Bearing Mid
  • Chainwheel: Eastern Phorcys, Chromoly, 25T
  • Chain: KMC Z510 1/2 x 1/8
  • Pedal: Eastern Facet Pedals
  • Rear Brake: U-Brake, Forged Alloy, Wide Body, Clear Brake Pads
  • Rear Lever: Forged Alloy Lever
  • Brake Cable: [S] Linear
  • Saddle: Medium Width Pivotal Seat
  • Post: Pivotal, Forged Alloy, 200mm
  • Front Hub: Sealed Bearing, Forged Alloy Shell, Drilled for 36 Spokes, 3/8″ Chromoly Axle
  • Rear Hub: Sealed Bearings, Forged Alloy Shell, Drilled for 36 Spokes, 14mm Chromoly Axle
  • Freewheel: 9 Tooth Driver with Hub
  • Front Rim: Alloy, Double Wall, Drilled for 36 Spokes. For 20″ Tires
  • Rear Rim: Alloy, Double Wall, Drilled for 36 Spokes. For 20″ Tires
  • Spokes: 14 Gauge with Brass Nipples
  • Front Tire: Eastern Squealer OEM 20 x 2.40
  • Rear Tire: Eastern Squealer OEM 20 x 2.40







For more information about this article from Eastern Bikes click here.
