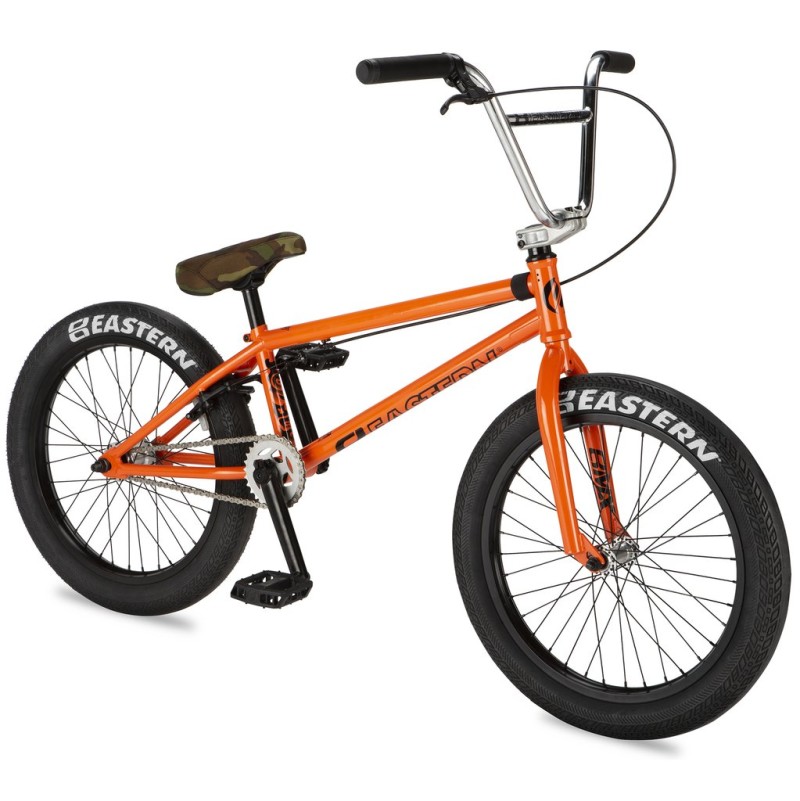

Eastern Bikes (United States) - The intermediate level Eastern Wolfdog is a great bike for riders wanting to up their ride. Built with a full chromoly frame and fork, a sealed bearing integrated headset, sealed hubs, a 3-piece chromoly cranks, chromoly sprocket, double wall rims plus Eastern Facet pedals and Squealer tires.
- 25.6 Lbs
- Full Chromoly Frame
- Chromoly Fork
- Sealed Hubs
- 3 Piece Tubular Chromoly Cranks
- Mid BB
- Integrated Headset
- Double Wall Front and Rear Rims
- Eastern Riblet Grips
- Chromoly Eastern Phorcys Sprocket
- Pivotal Seat
- 2.4" Eastern Squealer OEM Tires
- Eastern Facet Pedals
Frame:
- Wolfdog 20"
- Full Chromoly Frame
- Top Tube Size: 20.75″
- BB: Mid
- Headtube: Integrated
- Chainstay Length: 13.38″
- Clamp: Integrated with Frame
Bars:
- Hi-Ten 8.85"
- Upsweep/Backsweep 12⁰/1⁰
Fork:
- Wolfdog 20”, - Full Chromoly
- Fork Rake: 28mm
Other Components:
- Headset: Integrated 45°X45° Sealed Cartridge Bearing
- Stem: Forged Alloy Top Load Stem
- Grip: Eastern Riblet Grips
- Crank: 3-Piece, Tubular Heat-Treated Chromoly, Bolt for Sprocket, Pinch Bolt with 8-Splined Spindle, 170mm 31.8mm Round Arm
- Bottom Bracket: Sealed Bearing Mid
- Chainwheel: Eastern Phorcys, Chromoly, 25T
- Chain: KMC Z510 1/2 x 1/8
- Pedal: Eastern Facet Pedal with 9/16" Chromoly Axle
- Front Brake: N/A
- Front Lever: N/A
- Rear Brake: U-Brake, Forged Alloy, Wide Body, Clear Brake Pads
- Rear Lever: Forged Alloy Lever
- Brake Cable: [S] Linear
- Saddle: Medium Width Pivotal Seat
- Post: Pivotal, Forged Alloy, 200mm
- Front Hub: Sealed Bearing, Forged Alloy Shell, Drilled for 36 Spokes, 3/8″ Chromoly Axle
- Rear Hub: Sealed Bearings, Forged Alloy Shell, Drilled for 36 Spokes, 14mm Chromoly Axle
- Freewheel: 9 Tooth Driver with Hub
- Front Rim: Alloy, Double Wall, Drilled for 36 Spokes. For 20″ Tires
- Rear Rim: Alloy, Double Wall, Drilled for 36 Spokes. For 20″ Tires
- Spokes: 14 Gauge with Brass Nipples
- Front Tire: Eastern Squealer OEM 20 x 2.40
- Rear Tire: Eastern Squealer OEM 20 x 2.40
- Peg: none
