Rotwild (Germany) – "The Enduro eMTB R.E+ impresses with greater smoothness and its great control during rapid descents. The compact integrated power unit (IPU) allows for very agile geometry with short chain stays. The battery is structurally integrated into part of the bottom tube and has an impressive degree of stiffness while still keeping the weight down. With 648 Wh or 518 Wh (depending on the model) the IPU also offers a lot of drive to overcome long, steep sections. The performance optimised Brose Drive S does not generate any additional resistance after cutting out above the legal speed limit because it disengages completely. This means the bike remains easy to pedal even at speeds in excess of 25 km/h", explained Rotwild about the 2018 R.E+ Electric Mountain Bike.

"The perfectly aligned kinematics of the R.E+ provide direct responsiveness, a stable mean travel range and high traction. The influence of the drive was minimalised here and virtual pivots are adapted to the additional motor power", they added.

The R.E+ has an aluminium frame with a Crankbrothers Highline telescopic seat post. eMTB specific components, such as the DT Swiss Hybrid wheel set and 34” FOX forks, complete the Enduro eMTB.

"The R.E+ covers a very wide range of uses due to the different possible frame variants and support from the motor. The powerful XMS chassis provides great fun riding local trails, race circuits and bike parks", they concluded.

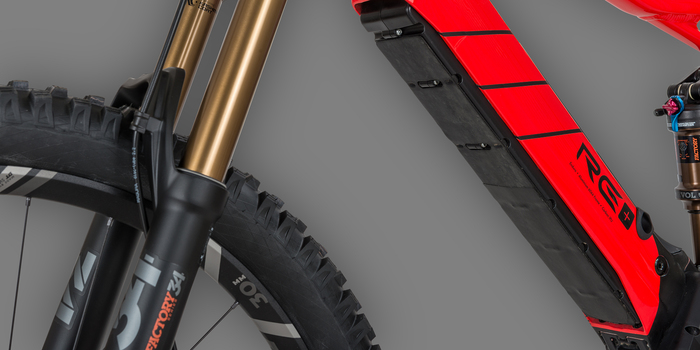

IPU.R.660.Carbon:


Removable, rechargeable battery with a total output of 648 Wh combine with a Brose Drive S engine with greater efficiency and improved temperature management.

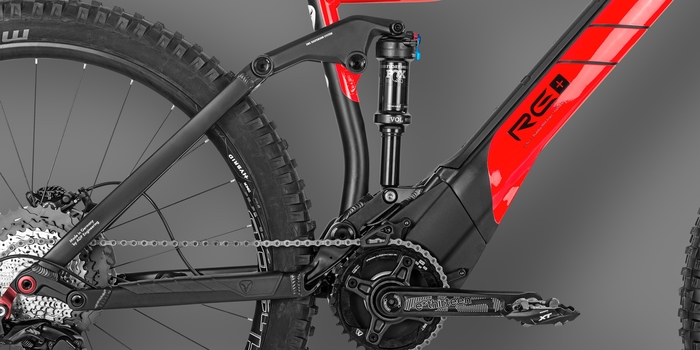

Rotwild XMS suspension system:


Kinematics with 160 mm suspension travel perfectly tailored to engine capability, virtual pivot point guarantees direct shock actuation, solid mid-stroke travel, behavior for maximum traction.

MHS I AR:


Specially designed headset with a steering stop (65° swivel angle) on both sides.

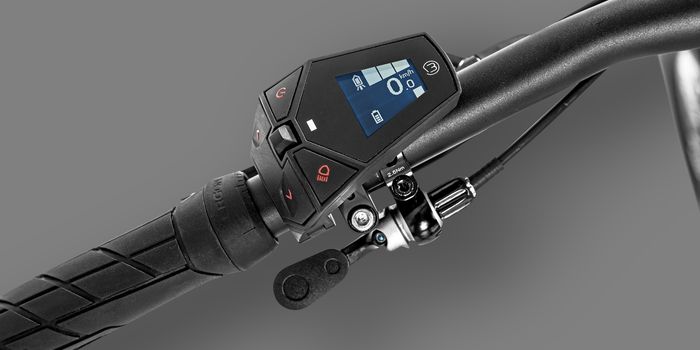

Control unit with integrated display:


Simple control of support levels and other functions.

Frame Features:

• Smooth running enduro E-MTB with 160 mm of travel
• Integrated power unit (IPU) - 648 Wh removable battery
• Performance optimised, 100 % decoupled Brose Drive S
• MHS I AR headset with anti-rotate function
• Kinematics aligned for E-MTBs
• Special enlarged bearings for increased durability

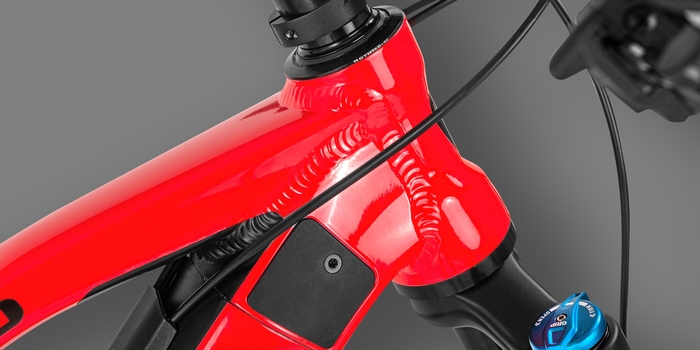

• Cable channel with integrated cable guiding
• Boost 148 technology
• Components optimised for E-MTB

Configuration R.E+ Ultra:

• Headset - Rotwild MHS I AR tapered TI
• Rear shock - Fox float 3-pos dps evol Factory Kashima
• Fork - Fox 34 float 160 3-pos fit4 lsc Factory Kashima
• Bar - Crankbrothers opium 15 mm rise / 780 mm width
• Stem - Crankbrothers iodine 50 mm (m, l) / 65 mm (xl)
• Seat post - Crankbrothers highline ø31.6 x 160 mm
• Saddle - Ergon sme30
• Grips - Ergon gd10 slim
• Crank - e13 trs+ carbon 165 mm / e13 spyder isis ii - boost
• Shifter - Sram ex1
• Rear derailleur - Sram ex1 8 speed
• Cassette - Sram ex1 11-48t
• Brake - Magura mtr-21
• Rotor - Magura storm hc 203/180
• Wheelset - DT swiss 27.5 hx1501 spline one (30) 110-15 / 148-12 tas
• Tire - Schwalbe magic mary apex soft / apex speedgrip 27.5x2.60

Other Versions:

• R.E+ Pro
• R.E+ Core
