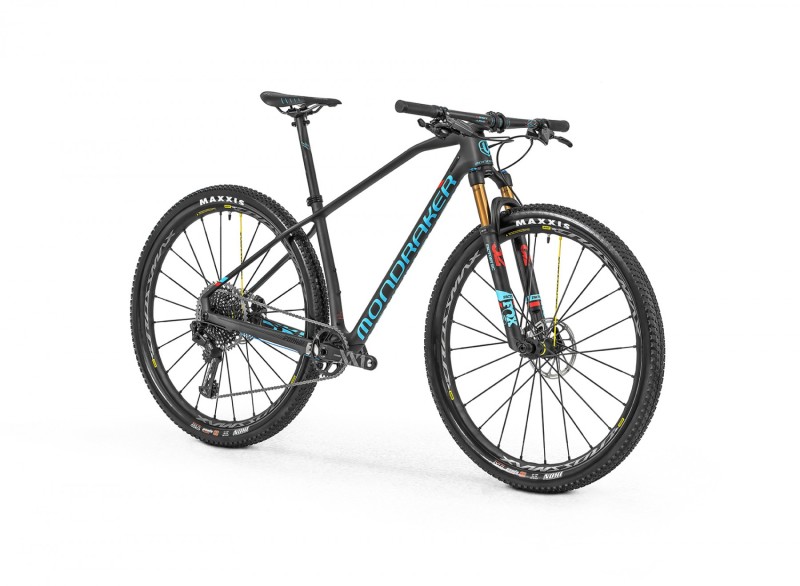

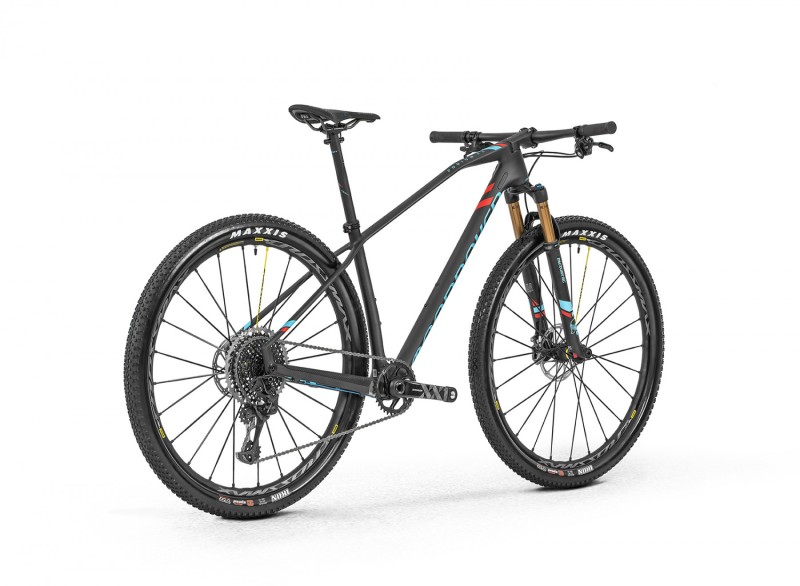

Mondraker (Spain) - For advanced XC riding and racing the latest and most refined Podium Carbon hardtail bike introduces small refinements to hit the most technical and extreme CXO World Cup courses.

Pure strength, top-level fitness, hardcore efforts - Podium Carbon will deliver maximum performance and the most efficient and fastest XC ride ever.

Podium Carbon RR pecifications:

• Frame: Podium 29 Stealth Air Carbon, Integrated Stem Technology (IST EVO), XC Forward Geometry, PF30 bottom bracket, tapered head tube, HHG internal cable routing, Boost 12x148mm rear axel, Flatmount brake compatible, steel chain protector
• Sizes: S: 395mm / M: 430mm / L: 470mm / XL: 520mm
• Rear shock: /
• Shock setting: /
• Fork: Fox 32 29 Float FIT4 EVOL Step Cast Factory Kashima, 100mm, tapered steerer tube,15x110mm Boost axle, remote lockout, offset 44mm. Settings: lockout, compression micro-adjustment at low-speed, rebound, air preload
• Headset: Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º
• Stem: Stealth Carbon Integrated, 31.8mm barbore, length: sizes S/M: 75mm, size L: 90mm, size XL: 105mm
• Handlebar: Onoff Peak Carbon 0.2, rise: 4.8mm, width: 720mm, 9º backsweep, 0º upsweep, 31.8mm barbore
• Grips: Onoff Diamond, 1lock-on, 130mm
• Seatpost: Onoff Peak Carbon 0-R VFLEX, diameter 27.2mm, length 400mm
• Saddle: Fizik Antares R5 K:IUM
• Front brake: Sram Level TLM, monoblock caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
• Rear brake: Sram Level TLM, monoblock caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
• Brake lever: Sram Level TLM, tooled reach adjust, lever pivot bushings
• Rim: Mavic Crossmax Pro 29, 22mm internal width, asymmetric, tubeless ready, ISM 4D, 24 spokes
• Spokes: Mavic Zicral
• Front hub: Mavic 15x110mm, sealed bearings, IS 6 bolts
• Rear hub: Mavic 12x148mm, sealed bearings, ID360, IS 6 bolts, XD freehub
• Front tyre: Maxxis Ikon 29x2.20, 3CMaxx Speed compound, tubeless ready, 120TPI, folding bead
• Rear tyre: Maxxis Ikon 29x2.20, 3CMaxx Speed compound, tubeless ready, 120TPI, folding bead
• Crank: Sram XX1 carbon Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm
• Rings: 34T, CNC-machined alloy, X-SYNC 2
• Bottom bracket: Sram DUB PF30, sealed bearings, 73mm
• Pedals: /
• Chain: Sram NX Eagle, 12s
• Front derailleur: /
• Rear derailleur: SRAM XX1 Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
• Lever: Sram Trigger X01 Eagle, 12s, X-Actuation 1:1
• Sprocket: Sram XG-1295, 10-50T, 12s
• Hanger: Mondraker M068
• Weight without pedals: 8,500
