The Abajo Peak Now with SRAM NX Eagle 1x12

The Abajo Peak Now with SRAM NX Eagle 1x12

Fezzari Bicycles (United States) - Press Release: The all-new Abajo Peak is the best we have ever built!  Better pedaling saves rider energy, better descending to instill confidence, and a more active, lively suspension design makes sure you return to the trail head with a smile on your face.

The heart and soul of the Abajo Peak is the new Tetra-Link suspension design combined with our GA-Link Geometry.

  • Climb-conquering pedaling efficiency – the suspension kinematics have been refined to increase pedaling efficiency and get you to the top of the climb faster and with more energy in your legs
  • A plush/bottomless feel – Fezzari designed a very progressive suspension to give an incredibly plush ride. This leads to great small bump sensitivity while preserving mid-stroke support
  • Active braking – the design ensures the suspension stays active under braking, even through technical sections



Fezzari’s GA-Link Geometry allows you to adjust the geometry for both 27.5 plus and 29er wheels while maintaining a consistent bottom bracket height between the two platforms.

The Abajo Peak has been with Fezzari since day one. Every time we redesign the frame it gets better and the AT529 frame is no exception. It has the Tetra-Link suspension that is specifically designed for  29er and 27.5+ wheel platforms, as well as the larger rear axle and headtube for stability. We've created a better pedaling platform for more power transfer to get those big wheels up over anything you encounter on the trail. The active suspension design coupled with the X-Fusion McQueen fork, with its 34mm stanchion and external low and highspeed compresion adjust, and X-Fusion O2 Pro RL shock keep even the biggest rocks tame. The simple and snappy SRAM NX Eagle shifting and SRAM hydraulic disc brakes will make it seem effortless when the trail gets vertical. If quality and value are at the top of your list look no further than the Abajo Peak.

Technology Included on this bike:

Alloy Tech:

Aluminum is one of the most durable, light, and stiff metals available. Recent advances in aluminum bicycle frame building have made these alloy frames even better and caused a resurgence in its use. Fezzari uses the latest technologies available, and we trickle many of these technologies down to even our entry-level bikes.

FIST:

FIST (Fezzari Intensive Strength Testing). All of our frames are tested to the highest standards, even if we aren't required to meet those standards in specific markets. The most stringent standards that bicycle frames are held to have traditionally been EU standards, but recently ISO standards have become a higher standard in some cases. These standards include extensive testing on a variety of fatigue testing machines and in-field riding. We comply with all these standards and back our frames and bicycles with the best warranties in the business.

FBS Analytics:

FBS Analytics (Full Bike System Analytics). We don’t just build frames, we build entire systems. All our frame technologies could go to waste if we didn't also look at the entire bike and the components. Although we use many new technologies, where possible we stay true to the simplest and most efficient systems, making it easier for everyone involved.

FRD Tetra Link:

There are many variables when it comes to suspension and handling characteristics. We have spent years researching and developing the technologies used in our FRD Tetra Link suspension design. We optimized our suspension design to favor a playful yet composed ride, one that pedals efficiently while still soaking up the big hits. Fezzari utilizes computer analysis alongside real world testing to make the most of its suspension design.

Tech Specs:

  • Frame: Fezzari Racing Design AT529, 130mm travel, full sealed cartridge bearings, replaceable derailleur hanger, tapered headtube, water bottle bosses
  • Fork: X-Fusion McQueen RCP, 27.5"+ to 3.25" tire, 140mm travel air spring, Roughcut RCP damper w/ 3 position platform, independent low speed compression adjust, rebound adjust, Boost 110x15mm Thru Axle, 34mm hard ano aluminum stanchion, tapered steerer

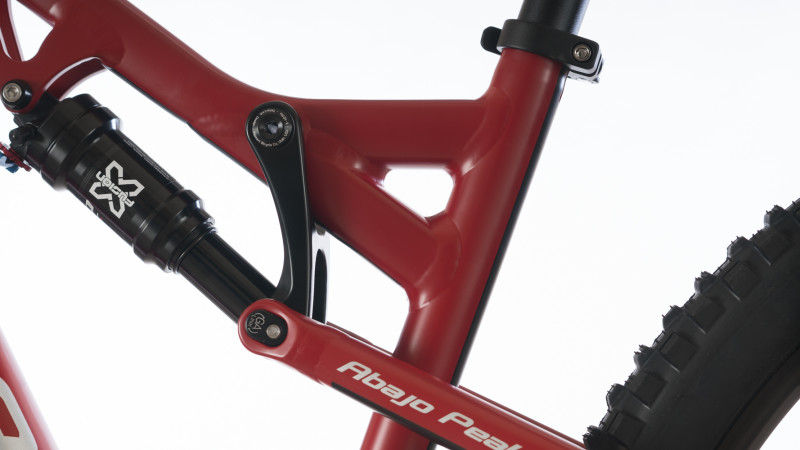

  • Rear Shock: Custom tuned X-Fusion O2 Pro RL, lockout, rebound adjust
  • Sizes: S, M, L, XL
  • Headset: FSA Orbit 1.5 ZS No.57E, internal sealed cartridge bearing, tapered
  • Shifters: SRAM NX Eagle 1x12
  • Front Derailleur: N/A
  • Rear Derailleur: SRAM NX Eagle 1x12
  • Cassette: SRAM NX Eagle PG-1230
  • Crank: SRAM NX Eagle DUB
  • Chainrings: SRAM X-sync 32T
  • Bottom Bracket: SRAM DUB for English Thread
  • Chain: SRAM NX Eagle 12-speed
  • Handlebars: Fezzari FRD Charger35, alloy, 35mm clamp, 780mm wide, 1" Rise, 9 degree bend
  • Stem: Fezzari FRD Charger35, alloy, 35mm clamp, sizes vary depending on custom fit
  • Tape/Grips: Fezzari lock-on grips
  • Saddle: WTB Volt Comp
  • Seatpost: Fezzari Alloy, Dual Bolt Clamp, 31.6 x 350-400 (based on custom setup), Dropper seatpost available after adding bike to cart
  • Pedals: Available Separately
  • Rims: WTB I29 TCS 2.0 29er, Tubeless Ready, 32 Hole (27.5 plus Option Available During Checkout)
  • Hubs: Front: Bear Pawls Sealed Bearing Disc Boost 110x15mm, Rear: Bear Pawls Sealed Bearing Disc Boost 148x12mm
  • Spokes: 1.8mm (15g) black stainless steel, brass nipples
  • Tires: Front: Maxxis Minion DHF 29x2.5 WT Exo/Tubeless Ready 60 TPI, Rear: Maxxis Minion DHR 29x2.5 Exo/Tubeless Ready 60 TPI
  • Tubes: Maxxis 29x2.5, (Tubeless Setup Option Available at Checkout)
  • Brakes: SRAM Level Hydraulic Disc, tooled reach adjust, SRAM Centerline Rotors, 180mm/160mm F/R
  • Brake Levers: SRAM Level Alloy
  • Extras: Fezzari Neoprene chainstay protector
