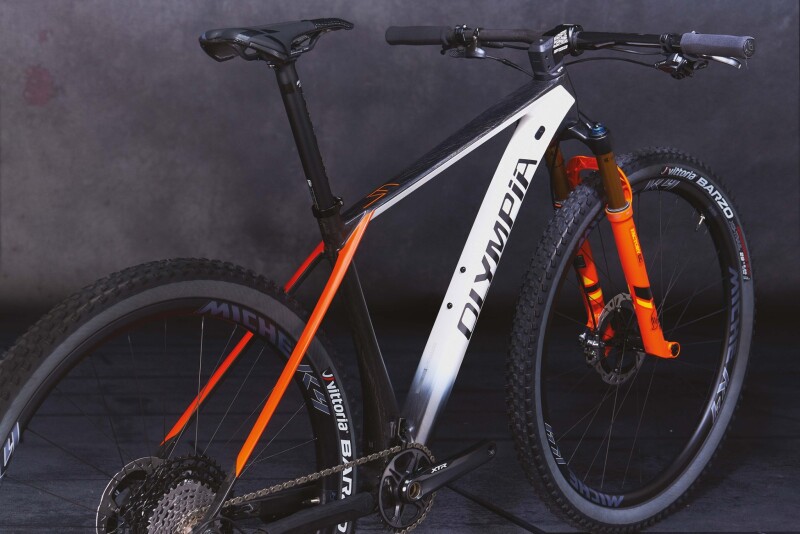

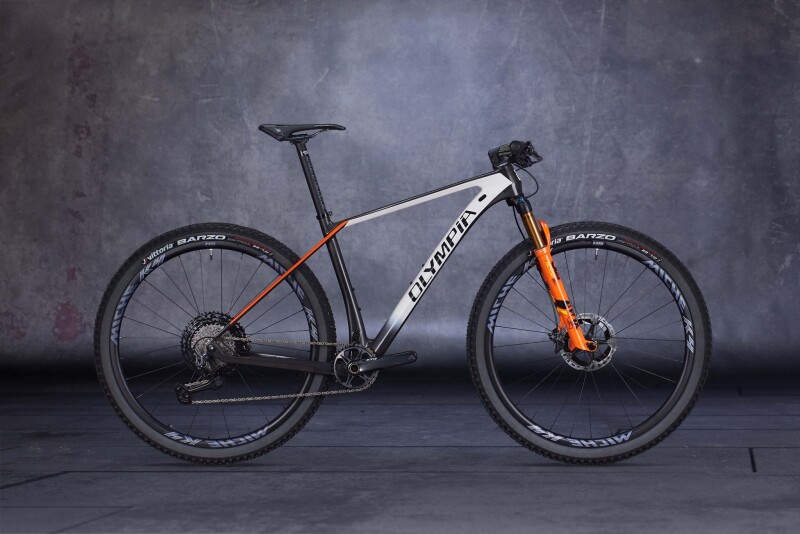

Olympia (Italy) - There are many new features in the 2021 version of F1, the iconic hardtail model by Cicli Olympia. The main one concerns its weight - considerably reduced thanks to a more streamlined design and the use of the EPS system in the construction of the monocoque Toray T1000, T800 and M40J carbon fibre frame. The geometries have been extensively redesigned to obtain a smoother riding feel and improve stability uphill and vehicle control downhill. In the size S, the bottom bracket has been raised to achieve a better bike balance. The 1.5/1.5-inch steering assembly is precise and rigid. The cable harnesses are integrated in the handlebars. The steering-fork assembly is highly compact. To increase comfort, the 430 rear stay has been flattened and the stays’ cross-sections have been reduced. Space requirements were taken into consideration to allow for tyres with a section of up to 2.35 and a drivetrain of up to 38.

The newly designed UDH dropout, compatible with future Sram derailleurs, rotates on itself if hit by branches or debris, avoiding twisting or breaks. The chain guide has been completely redesigned to be more functional and lighter. F1 is factory-ready for mounting a telescopic seat post.

Highlights:

• Lattex Eps Molds
• 3 Types Of Carbon Fibers
• Integrated Cables Routing
• Advaced Geometry
• Udh Hanger

AVO R1 Specs:

• Frame Carbon Toray T1000 - T800 - M40J Monocoque UDC Hi Module
• Fork opt. Fox 32 FLOAT STEPCAST FACTORY 29” FIT4 100mm | Boost: 110x15mm | TAP
• Fork opt. Rock Shox SID SL SELECT 29" DFB 100mm | Boost: 110mm | TAP | T.A: 15mm
• Crank Set Sh. XTR M9100 (34T,B148)
• R. Der. Shimano XTR RD-M9100 GS (12s.)
• Shifters Shimano XTR SL-M9100
• Disc Brake Shimano XTR BR-M9100
• Disc Shimano RT900
• Cassette Shimano XTR CS-M9100 (10/51)
• Chain Shimano XTR CN-M9100
• Saddle Sella Italia X-LR Ti316
• Seatpost Ritchey Trail WCS BB Black
• Seatpost opt. Dropper / Telescopico Tranzx JD-YSP07
• Stem Fsa ST ICR Black
• Handlebar Fsa KFX ICR Carbon 760mm Black
• Wheels Ztr ARCH MK3 | Hub Miche 966 F:15 R:12mm
• Tires Vittoria Barzo 2.25 XC-Trail G2.0
• Wheels / Tires opt. Miche 988HS| F:15 R:12mm / Vittoria Barzo 2.25 XC-Trail G2.0
• Wheels / Tires opt. Miche K4 Carbon| F:15 R:12mm / Vittoria Barzo 2.25 XC-Trail G2.0
