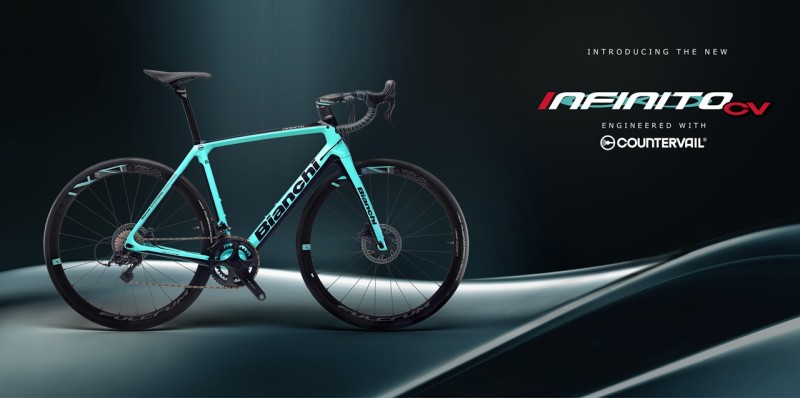

Bianchi (Italy) - Less fatigue, more Control, the New Infinito CV Disc.

The new Bianchi Infinito CV Disc carbon bike is the ultimate choice for long rides - pro races or granfondo events. Designed to be faster and smoother, the new Infinito CV with disc brakes is built for endurance.

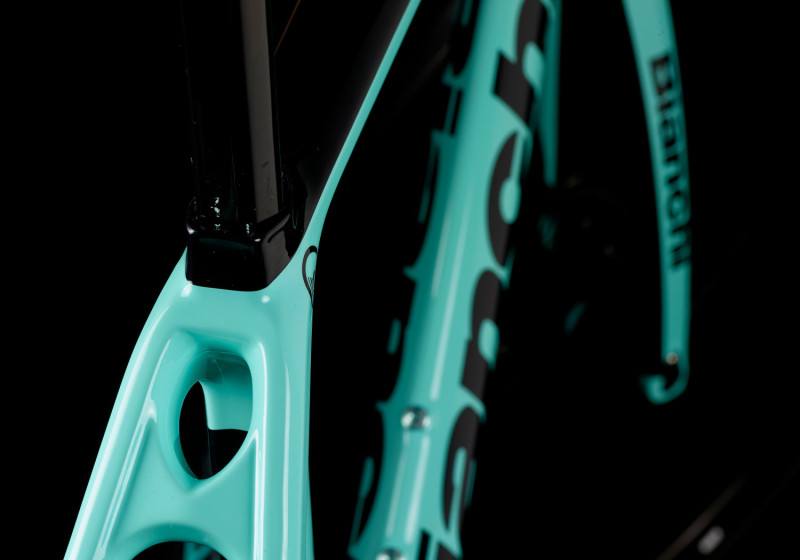

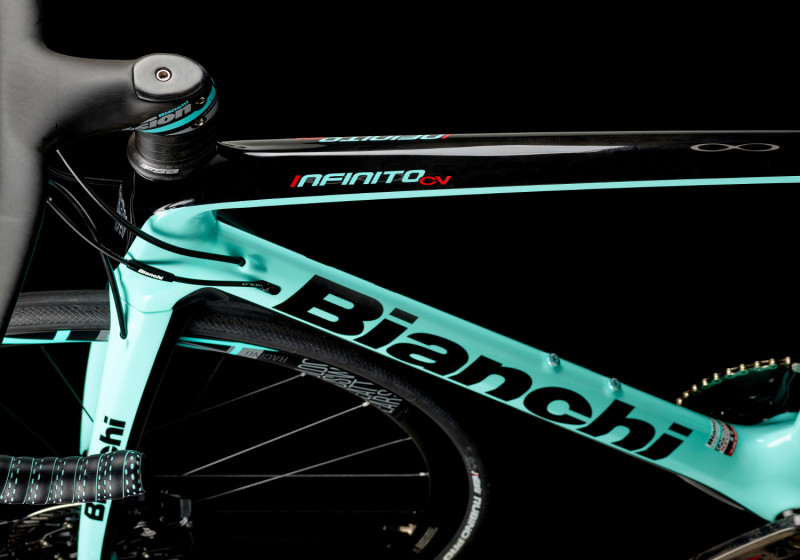

New Frame Design:

The Infinito CV Disc, with its re-designed frame shape, has been developed with endurance-specific geometry and thru-axle rear dropouts for optimum integration with disc brakes.

Longer chainstays help smooth the ride, and a taller aero headtube gives the rider a low-stress neck position, enhanced by Countervail’s vibration cancelling capacity. The specific CV tuning process reduces rider’s muscle fatigue and increases control for a better overall performance, especially on bumping roads and cobblestone sections.

New Seatpost:

The new Infinito CV Disc has been engineered to be also more aero by using a new integrated-look carbon seatpost. The bike is also compatible with Metron 5D aero handlebar for those who want a special touch to the sleek overall aesthetic of the new model.

Less Fatigue, More Control:

Like Bianchi’s first-generation model, the new Infinito CV Disc is engineered with the revolutionary Bianchi CV System, using patented Countervail carbon material, to cancel road vibrations.

What is Countervail®?

The key technology Countervail® is a carbon composite-material system that combines patented structural carbon with viscoelastic resin.

Bianchi CV Integrated Vibration Cancelling System:

Bianchi collaborated with Materials Sciences Corporation to develop our innovative and exclusive use of the MSC’s patented Countervail® integrated vibration cancelling system for cycling.

Countervail® is a carbon composite-material system that, with special fiber architecture, combines patented structural carbon with viscoelastic resin. Countervail® cancels 80% of vibrations while increasing the stiffness and strength of our carbon frames and forks.

Countervail® is embedded within the entire frame of Bianchi CV high-performance road and MTB models: Specialissima, Oltre XR4, Oltre XR3, Infinito CV, Aquila CV and Methanol CV.

Proven In Nasa Aerospace Operations:

Traditional passive damping in frames using superficial rubber inserts and isolators are marginally effective compared to the integrated carbon Countervail® system developed by Bianchi for cycling and proven in the extreme conditions of NASA aerospace operations.

Optimized Frame Performance:

The specific CV tuning process reduces rider’s muscle fatigue and increases control for a better overall performance, especially on bumping roads and cobblestone sections.

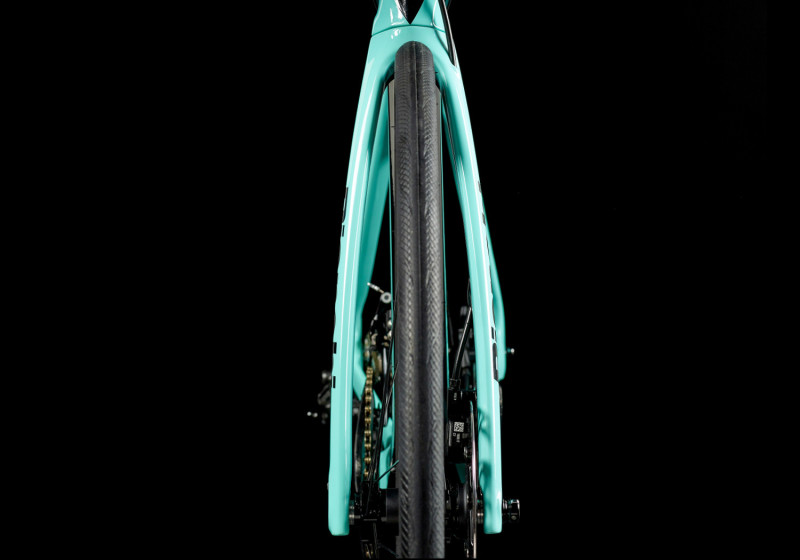

Fork:

The Infinito CV Disc is fitted with a shallow curved blade, aero, full-carbon fork. Featuring a 1.1/8 -1.5in taper steerer and 12x100mm thru-axle drop outs, for steering stability and precision and braking performance.

The fork weighs 390g.

Integrated Disc Brakes Mount:

The Infinito CV Disc frame and fork feature fully-integrated Flat Mount Disc brakes, delivering uniform power, increased efficiency and precise modulation for strong predictable braking, in any weather conditions.

Compatible with 140 or 160mm rotors. Cables for brakes and drivetrain are all internally routed.

Endurance Geometry:

Riding long distances requires a special focus on perfect fit. The downtube diameter on the 57-61cm frames is Infinito CV Disc is increased by 5mm to increase torsional stiffness and optimize weight.

Infinito CV Disc uses an integrated-look carbon seatpost, featuring a saddle rail clamp that is adjustable for fore/aft position from +25 to -10mm. This allows riders to create the perfect seated pedaling position for maximum performance over extended hours.

Larger Volume Tyres:

When riding long distances with extended time in the saddle, larger volume tyres are the answer. The Infinito CV Disc is compatible with tyres up to 32mm. High-volume tyres add extra grip, comfort and control, without affecting rolling efficiency, or speed.

Technical Features:

• Full carbon fibre monocoque frame and fork engineered with Countervail material
• Specific endurance geometry
• Designed specifically for disc brakes
• Tapered headtube 1.1/8”-1.5”
• Press Fit BB Set 86.5x41mm
• Chian stays length: 415mm
• Internal hydraulic cable guide housing
• Full carbon thru axle dropouts, 12x100mm and 12x142mm
• Flat Mount system (Shimano Standard)
• Added clearance for wider, larger volume tyres – up to 32mm
• Di2/Eps compatibility
• Full carbon seat post with adjustable saddle clamp (25mm or -10mm offset)
• 7 sizes: 47-50-53-55-57-59-61cm
• Weight in size 55: 950g (+/-5%)
• Fork Weight: 390g
