Superior (Czechia) - Press Release: We managed to create an e-bike with perfect battery and motor integration, completely internal cable routings, which at first glance is no different from a classic bike. With sophisticated geometry virtually identical to our top racing models, with 130/140 mm of travel the EXF 9049 R offers great maneuverability, playfulness, and confidence on technical trails. The Shimano Steps E8000 is a sophisticated and reliable system, which delivers the watts exactly when needed according to the intensity of pedaling and profile of the trail. You will appreciate some practical details, such as the possibility of mounting two bottle cages.

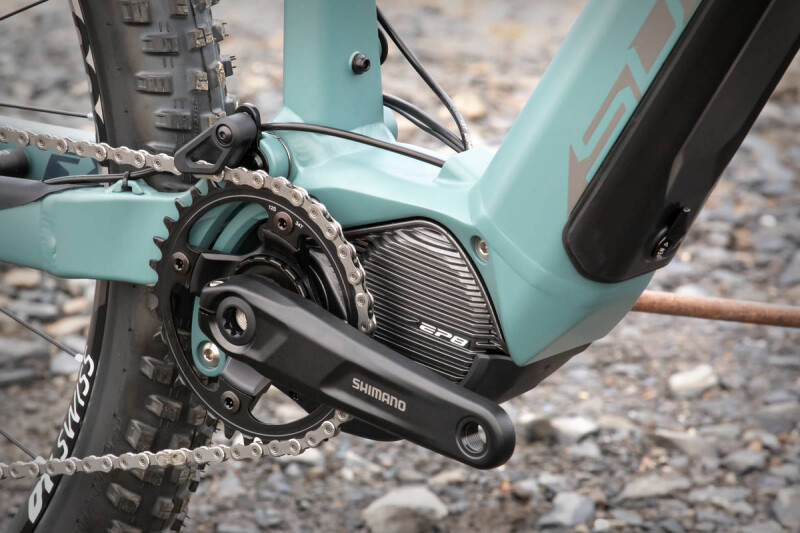

• Shimano EP8 motor: 85 Nm, low noise, high performance
• Full integrated 630 Wh battery ensures a range over 150 km*
• Progressive geometry shared with the carbon racing bikes
• E-TUBE PROJECT: customized motor setting via the E-Tube Shimano application
• Total battery integration, and internal cable routing
• 140/130 mm travel of the DT Swiss dampers
• DT Swiss H1900 SPLINE wheelset designed for e-bikes
• Dropper post with travel values of 125 mm (S and M frame sizes) and 150 mm (L and XL sizes)
• Lightweight tires Schwalbe Nobby Nic SnakeSkin 29x2.60"

Specs:

Frameset:

• Frame: Alu X6 Ultralite MTB Trail SUE03-EP8, Advanced e-MTB Geometry, Travel 130 mm, SHIMANO STEPS ready, Prepared to 630Wh integrated battery, 3D alloy one piece link, Alloy swingarm, SR dropout, Boost 12x148 mm, Inner cable routing, Dropped seat post ready
• Head Set: ACROS AZX-596, ZS56/28.6 | ZS56/40; BlockLock 120°
• Fork: DT Swiss DT-F535 Tapered, 15x110mm axle, 140mm travel

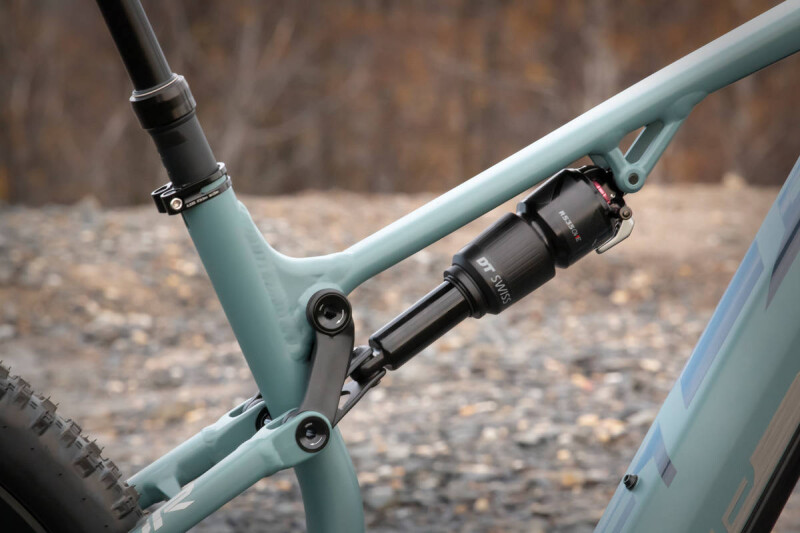

• Rear Shock: DT Swiss R 535 ONE, Lockout, size 210x50mm, Bushing body for DT Swiss
• Colour: Matte Trooper Green/Chrome Silver
• Sizes: 15.5" (S), 17.5" (M), 19.0" (L), 21.0" (XL)

Drivetrain:

• Gears: 1x12
• Shifter: Shimano XT SL-M8100-IR RapidFire Plus, 12-speed
• Rear Derailleur: Shimano XT RD-M8100 Shadow Plus
• Crankset: Shimano FC-E8000, 34T
• Cassete: Shimano CS-M6100-12, 10-51T
• Chain: Shimano CN-M6100

Components:

• Handlebar: One1 Alloy, MTB AL-725, 3° upsweep, 7° backsweep, 20mm rise, 780mm, 31.8mm
• Stem: One1 TDS-661 Alloy, 31.8mm, 0°
• Grips: One1 VLG-1907D2, ONE1 VLG-1962-11D2, Lock-On
• Brakes: Tektro HD-EU830, hydraulic disc brake
• Saddle: Fizik Taiga
• Seat Post: One1 Alloy, MT171, dropper post, 30.9mm

Wheels:

• Tires: Schwalbe Nobby Nic Evo Super Trail, 29x2.60", ADDIX Speedgrip
• Wheelset: DT Swiss H 1900 Spline 29; 12x148mm, CENTER LOCK, Tubeless, DT Swiss H 1900 Spline 29; 15x110mm, CENTER LOCK, Tubeless

E-Bike:

• Drive Unit: Shimano Steps EP800, 36V, 250W, 85Nm
• Battery: Darfon, 36V, 630 Wh, frame mount
• Display: Shimano SC-EM800, Clamp band
• Charger: Darfon 4A Smart Plus charger

Weight:

• Weight*: 22,3 kg
