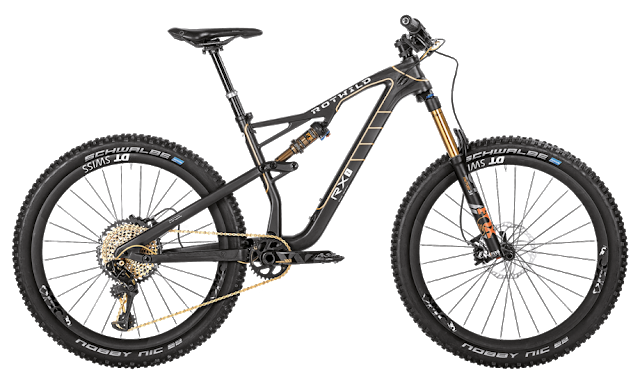

New R.X2 Family of All Mountain Bikes unveiled by Rotwild

New R.X2 Family of All Mountain Bikes unveiled by Rotwild
Rotwild (Germany) – According to Rotwild, "the all mountain R.X2 is impressive in all areas with highly innovative technology and individual adjustments. The extremely light, multifunctional full carbon frame has out-of-saddle stiffness for efficient acceleration and head tube stiffness for cornering precision". The R.X2 is flexible when it comes to wheel sizes: it can take 29", 27.5" and 27+" wheels.

Be it transalp, trail or traction, regardless of the size of wheel, the geometry of the R.X2 remains unchanged, particularly in regard to steering and seat angles as well as kinematics. The MHS 1 headset developed by Rotwild can change the steering angle via various exchangeable cups in three positions (0° and +/- 1.5°) altering the ride dynamic. This can also be influenced via the adjustable chain stay length which can be easily switched between 422.5 and 435 mm using the MDI III inlay inserts.

"With 140 mm travel the chassis has sufficient reserves to conquer difficult stretches", they stated. Fully integrated cable routing through the bottom bracket avoids tight bends and ensures more precise and easier shifting as a result of less friction.

EPS Carbon Technologie:

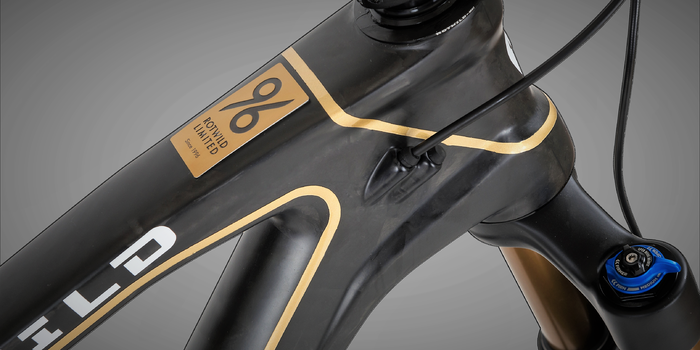

Handmade carbon frame featuring HT and HM fiber mix and 2.080 g frame weight (size M).

Limited Edition:

Special model limited to 25 pieces.

Rotwild XCS suspension system:

With 140 mm of travel, smooth responding suspension setup and progressive shock curve.

Fully integrated cable routing:

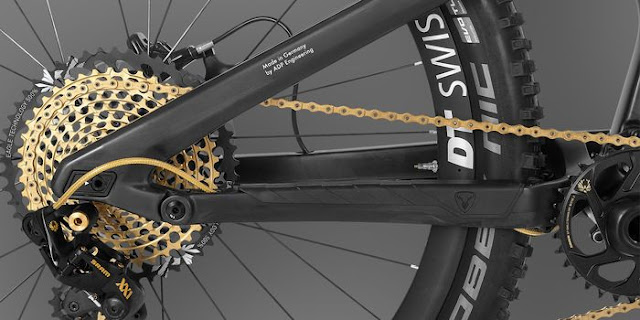

In main frame and chain-stay for precise and easier shifting due to less friction.

Frame Features:
  • Multifunctional all mountain frame concept
  • Handmade EPS carbon frame
  • High level of stiffness in the frame: head tube stiffness: 87 Nm/°, bottom bracket stiffness: 106 N/mm
  • XCS kinematics with 140 mm travel: sensitive responsiveness, progressive end range of travel
  • MHS I headset
  • MDI III
  • 3 wheel sizes can be used: 29“, 27,5“ and 27“+ (tyre width up to 2.8)
  • Optimised bearings for ball bearings
  • Fully integrated cable guiding
  • Boost 148 technology
  • ISCG 05 chain guide adapter to install chain guide

Configuration R.X2 Limited:
  • Headset - Rotwild MHS I tapered TI
  • Headset - Rotwild MHS I 1.5+/- tapered Ti
  • Rear shock - Fox float 3-pos DPS evol Factory Kashima
  • Fork - Fox 34 float 140 3-pos fit4 LSC Factory Kashima
  • Bar - Crankbrothers Cobalt11 15/780 mm Carbon
  • Stem - Crankbrothers Iodine 50 mm (s) / 65 mm (m, l) / 80 mm (xl)
  • Seat post - Crankbrothers Highline ø31.6 x 100 mm (s) / 125 mm (m) / 160 mm (l, xl)
  • Saddle - Ergon SMR3 Pro Carbon
  • Grips - Ergon GD10 slim
  • Crank - Sram XX1 Eagle Carbon 32t. 170 mm (s) / 175 mm (m, l, xl) / bb92 press fit - boost
  • Shifter - Sram XX1 Eagle
  • Rear derailleur - Sram XX1 Eagle 12 speed
  • Cassette - Sram XX1 Eagle 10-50t.
  • Brake - Magura MTR-21 ltd
  • Rotor - Magura Storm sl 180/180
  • Wheelset - Dt Swiss 27.5 xmc1200 spline (30) carbon 110-15 / 148-12 tas
  • Tire - Schwalbe Nobby nic
  • Snake Skin Speedgrip 27.5x2.60

Other Versions:
  • R.X2 Trail Ultra
  • R.X2 Trail Pro
  • R.X2 Trail Core
  • R.X2 Frameset
