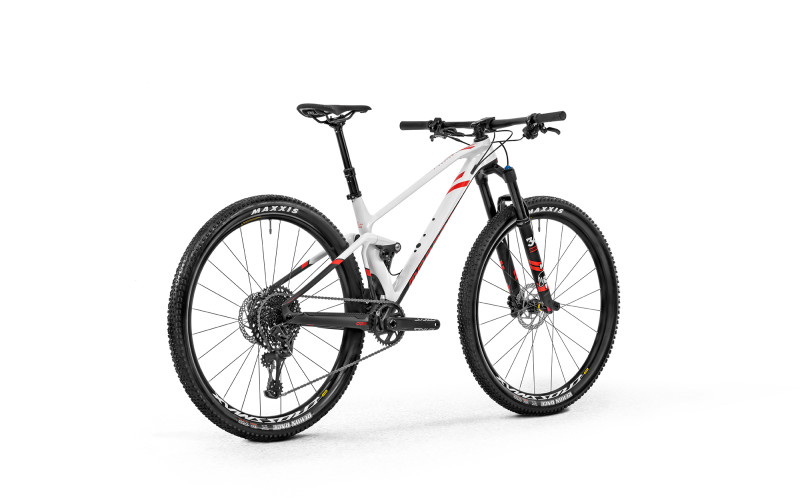

Mondraker (Spain) - New F-Podium DC R.

F-Podium Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 120mm, XC Forward Geometry. Understanding the Cross Country in a different way.

Specs:

• Frame: F-Podium Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 100mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount.
• Sizes: S: 390mm / M: 420mm / L: 470mm / XL: 510mm
• Rear shock: Fox Float DPS SV EVOL Performance Elite, 185x47,5mm. Settings: 2 position remote compression (open/lock), low-speed rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
• Shock setting: Firm compression, light rebound, air volume spacer 0.2
• Fork: Fox 34 29 Float GRIP EVOL Step Cast Performance, 120mm, tapered steerer tube,15x110mm Boost axle, remote lockout, offset 44mm. Settings: lockout, rebound, air preload
• Headset: Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45°x45°, bottom 51.9x40x8x45°x45°
• Stem: Mondraker Chrono Carbon, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5°, length: sizes S/M: 50mm, size L/XL: 60mm
• Handlebar: OnOff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9° backsweep, 0° upsweep, 31.8mm barbore
• Grips: Onoff Desert, 1lock-on, 135mm sizes: S/M L/XL
• Seatpost: Onoff Pija dropper internal, diameter 31.6mm, S size: 337x100mm, M size 387x125mm, L/XL size: 425x150mm
• Saddle: Fizik Antares R7
• Front brake: Shimano MT501, RT56 180mm IS 6 bolts rotor, resin pads
• Rear brake: Shimano MT501, RT56 160mm IS 6 bolts rotor, resin pads
• Brake lever: Shimano MT501, servo wave, alloy lever
• Rim: Mavic Crossmax 29, 25mm internal width, asymmetric, tubeless ready, 24 spokes
• Spokes: Mavic Steel
• Front hub: Mavic 15x110mm, sealed bearings, IS 6 bolts
• Rear hub: Mavic 12x148mm, sealed bearings, ID360, IS 6 bolts
• Front tyre: Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead
• Rear tyre: Maxxis Rekon Race 29x2.25, EXO protection, tubeless ready, 120TPI, folding bead
• Crank: Truvativ Stylo 7K Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm
• Rings: 34T, CNC-machined alloy, X-SYNC 2
• Bottom bracket: Sram DUB PF30, sealed bearings, 73mm
• Pedals: /
• Chain: Sram NX Eagle, 12s
• Front  derailleur: /
• Rear derailleur: Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-actuation 1:1
• Lever: Sram Trigger NX Eagle, 12s, X-Actuation 1:1
• Sprocket: SRAM XG-1275, 10-50T, 12s
• Hanger: Mondraker M068
• Others: /
• Weight without pedals: 11.9 kg
