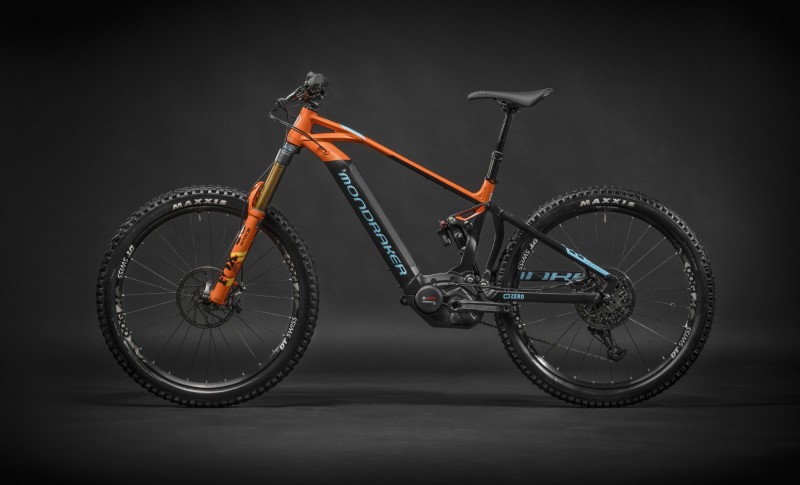

Mondraker (Spain) - Press Release: Can you imagine how far the new Crafty might take you? Any time is ideal to go on an adventure. Imagine a desert landscape full of infinite hills. A dry and arid terrain full of endless trails filled with uphills and downhills with a perfect grip...

Don´t dream about it… make it happen!!

Mondraker Crafty is synonymous with fun, enjoyment guaranteed. Two All Mountain-Enduro models with the perfect specs and exclusive Stealth Alloy integrated design frames that will help you tackle any challenge on the mountain. Capable -Ebike Optimized- specific for electric bicycles suspension package with 160mm Fox 36 forks and super supple 150mm Fox DPX2 piggy back shocks and Zero suspension system, with the added security and confidence that only the genuine and original Forward Geometry can offer.

Which are the reasons that have made the Crafty our most famous Mondraker electric bicycle model? Perhaps because it offers an advanced e-MTB design concept? Perhaps because it features a multi-purpose nature with Enduro profile and suspension travel suitable for everybody? Maybe because of its evolved Forward Geometry that lets you squeeze the bike to its maximum no matter how skilled you are? Try it and prove it for yourself.

Stealth FG frame with integrated battery:

Crafty is our most popular e-MTB and this latest 2019 model feature exclusive Stealth Alloy frames with revised and improved Zero Suspension and Forward Geometry. Its cutting-edge and sleek design perfectly matches bigger wheels and its advanced e-MTB concept.

Powered by Bosch:

Crafty range feature the leading-edge technology from the German manufacturer Bosch, featuring the best performing motor in the e-MTB segment -Performance CX- with discreetly integrated and removable 500Wh Powertube batteries hidden inside the main tube.

e-MTB 27’5” Plus:

Bigger wheels are also a reality in the most aggressive MTB segment and electric bicycles are no exception. Crafty R and RR spec e-MTB specific DT-Swiss Hybrid wheels capable of withstand more than 150 kilos of System Weight (weight of the bicycle + weight of the biker with equipment combined) with 35mm internal width rims with Maxxis Minion DHF 2.8" front and High Roller 2.8” rear tires: the best choice focused on achieving the best performance, confidence inspiring and maximum grip on a bike of its kind.

Forward Geometry with shorter fork offsets:

Special mention -as its importance requires being common feature and evolution in all our 2019 Forward Geometry models-, Crafty RR and R feature short 44mm offset forks which perfectly match Forward Geometry with clear performance gains: increased stability at speed, better front wheel control and dramatically improved front tire grip. Shorter fork offsets have its biggest and superior benefits in combination with our genuine and distinctive Forward Geometry concept with its super responsive and direct steering featuring FG30mm stem and long reach. The increase in trail boosts steering stability with a 65,3º standard head angle with 160mm forks.

The result? Shorter offsets combined with Forward Geometry translates into a more playful ride, the feeling that you can attack harder in corners with extra confidence and added grip as a bonus, and a more enjoyable and faster ride overall.

Technology:

Zero system e-MTB optimized:

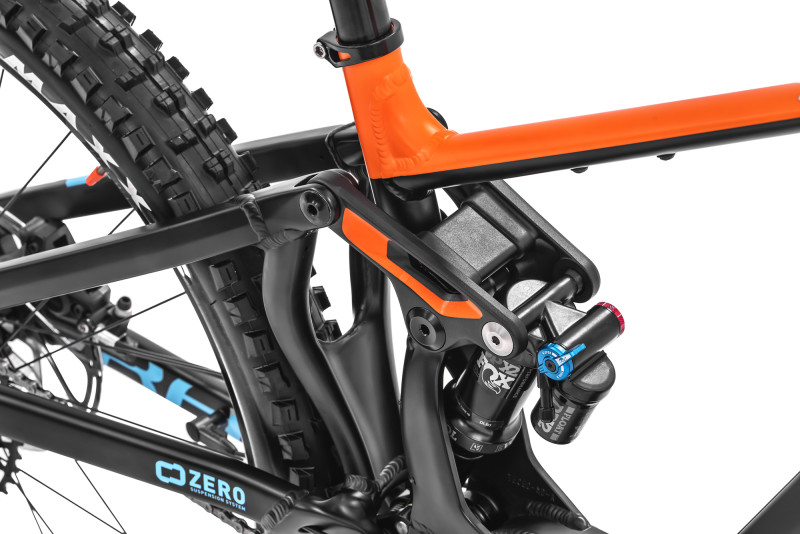

One of the most remarkable features making the most difference in the excellent performance when riding any Mondraker full suspension model is due to its Zero suspension system which, in this model for 2019, has increased its rear wheel travel to 150mm. On both Crafty models we find a metric sized Fox DPX2 LV EVOL Performance 205x65mm shock with Trunnion upper mount and large bearings located at the main aluminium one piece Monoblock link offering exquisite sensibility and impressive big bump absorption for the plusher ride.

Stealth FG frame with integrated battery:

Crafty is our most popular e-MTB and this latest 2019 model feature exclusive Stealth Alloy frames with revised and improved Zero Suspension and Forward Geometry. Its cutting-edge and sleek design perfectly matches bigger wheels and its advanced e-MTB concept.

HHG Internal cable routing: Hidden Housing Guide:

Both Craftys benefit from our HHG technology with internal guide for the rear derailleur cable, rear brake line and internally routed dropper on all models. HHG features some external stops to attach the cables, avoiding any possible noise whilst preserving the most sleek and as clean as possible design.

Boost 148x12 y 110x15 mm:

Just like all e-MTB Mondraker models in our line, new Craftys feature Boost hubs with 110x15 mm front and 148x12 mm rear spacing.

Oversized pivot thru-axles and bearings:

Same as all our others e-MTB full suspension Mondraker models, Craftys benefit from bigger diameter thru axles (15 mm) as well as featuring oversized bearings, increasing lifespan and reliability, able to withstand higher loads and a more demanding ride.

Tapered headset / Post-mount rear brake:

Crafty models feature tapered 1-1/8” upper and 1-1/2” lower headtube. Rear brake is post-mount with the caliper located between seatstays and chainstays- improving brake efficiency and minimizing vibrations.

Crafty RR+ Specifications:

• Frame: Crafty 27´5+ 6061 Alloy Stealth Evo, Zero Suspension System, 150mm travel, Forward Geometry, intenal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, exclusive plastic motor covers, shock mudguard
• Sizes: S: 380mm / M: 420mm / L: 470mm / XL: 500mm
• Rear shock: Fox Float DPX2 LV EVOL Performance, 205x65mm. Settings: compression 3 positions lever, low-speed rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
• Shock setting: Light compression, light rebound

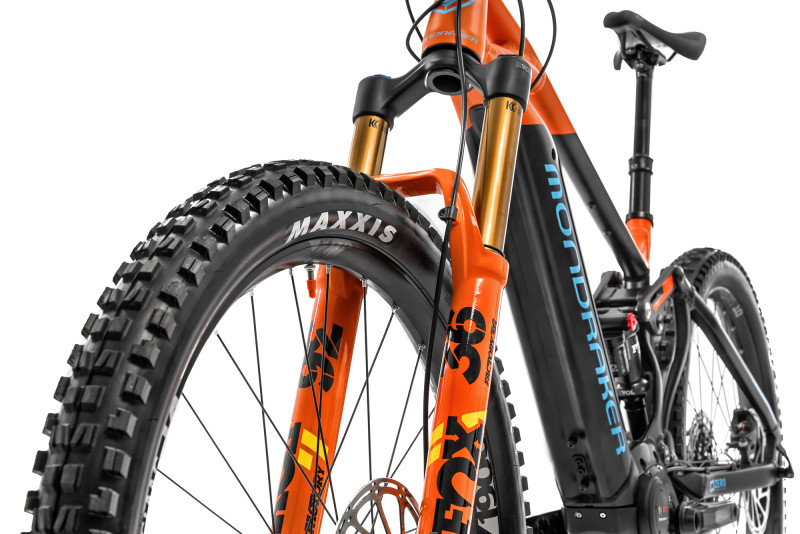

• Fork: Fox 36 29 Float FIT4 EVOL Factory Kashima, 160mm, e-bike optimized, tapered steerer tube, 15x110mm axle, offset 44mm. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
• Headset: Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

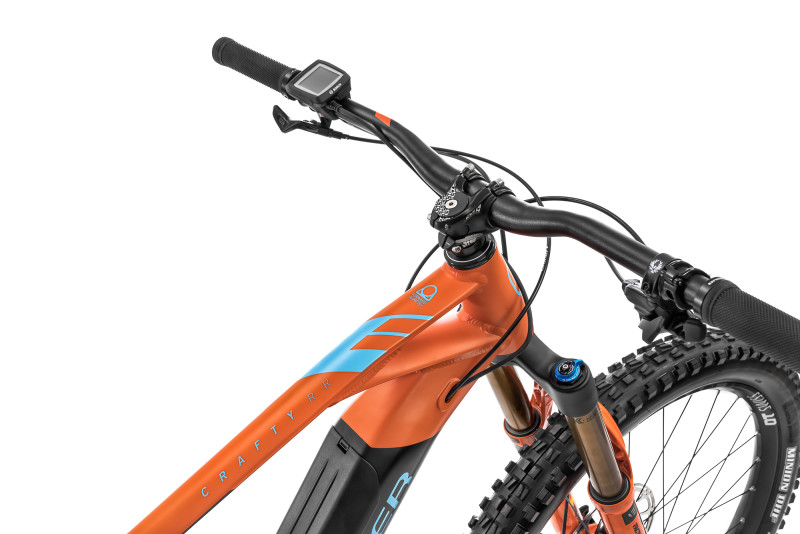

• Stem: Onoff Stoic FG 30mm, 6061 forged alloy, 31.8mm barbore
• Handlebar: Mondraker double butted 6061 alloy, rise: 25mm, width: 780mm, 9º backsweep, 5º upsweep, 31.8mm barbore
• Grips: Onoff Diamond, 1lock-on, 130mm
• Seatpost: Onoff Pija dropper internal, diameter 31.6mm, S size: 337x100mm, M size 387x125mm, L/XL size: 425x150mm
• Saddle: SDG Bel-Air 2.0, Cro-Mo rail, PU foam
• Front brake: Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
• Rear brake: Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
• Brake lever: Sram Code R, tool-free reach adjust
• Rim: DT Swiss H1900 Spline 27´5, 35mm internal width, tubeless ready, 28 spokes
• Spokes: DT Hybrid SP, straight pull
• Front hub: DT 370, 15x110mm, IS 6 bolts
• Rear hub: DT 370, 12x148mm, IS 6 bolts
• Front tyre: Maxxis Minion DHF 27´5x2.8, Tubeless ready, Dual compound, Exo Protection, 60TPI, folding bead
• Rear tyre: Maxxis High Roller II 27´5x2.8, Tubeless ready, Dual compound, Exo Protection, 60TPI, folding bead
• Crank: Bosch Performance Line CX system, PowerTube battery 500Wh , Purion on-board computer, RaceFace Aeffect ebike crankset, 165mm
• Rings: MDK 16T, narrow-wide, 6mm offfset
• Bottom bracket: /
• Pedals: /
• Chain: Sram NX Eagle, 12s
• Front  derailleur: /
• Rear derailleur: Sram NX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-actuation 1:1
• Lever: Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click
• Sprocket: Sram PG-1230, 11-50T, 12s
• Hanger: Mondraker M067
• Others: Weight without pedals
