New Mondraker Crafty Carbon RR... Defining the Concept of Real eMTB

New Mondraker Crafty Carbon RR... Defining the Concept of Real eMTB

Mondraker (Spain) - Press Release: We’ve built our reputation by continually developing the most responsive, agile and rewarding mountain bikes possible.

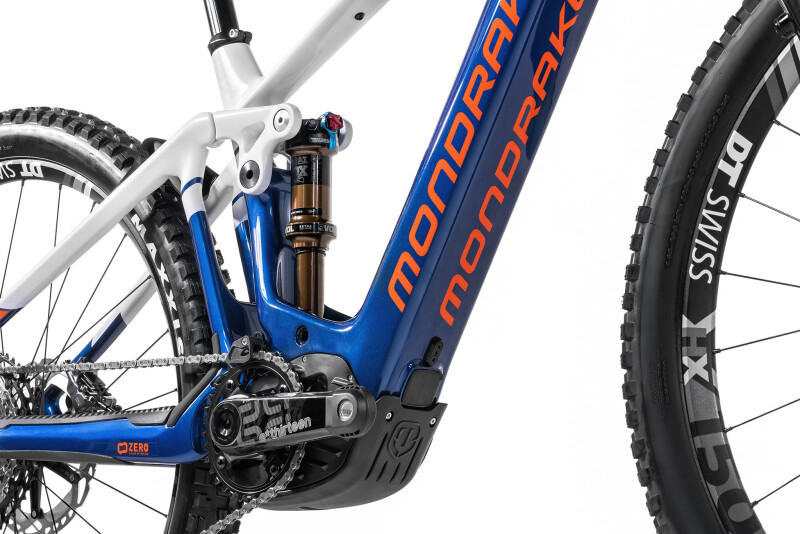

Crafty Carbon RR’s Stealth Air Full Carbon frame wraps around the powerful yet smooth Bosch Gen4 motor and Powertube battery for full size power and range at an ultralight weight. The super-slick Kashima coating of the Fox Factory 36 fork and Float DPS rear shock in our e-bike tuned Zero Suspension system mean instantly mobile, supple ground tracking traction and smoothness. Our Forward Geometry handling design pins corners and snatches saves with synapse flash speed. Race weight DT Swiss Hybrid HX1501 29er wheels and E13 TRS Carbon crank multiply every motor or muscle watt for effortless speed and deliver dynamic all mountain style all day long.

Technical specs:

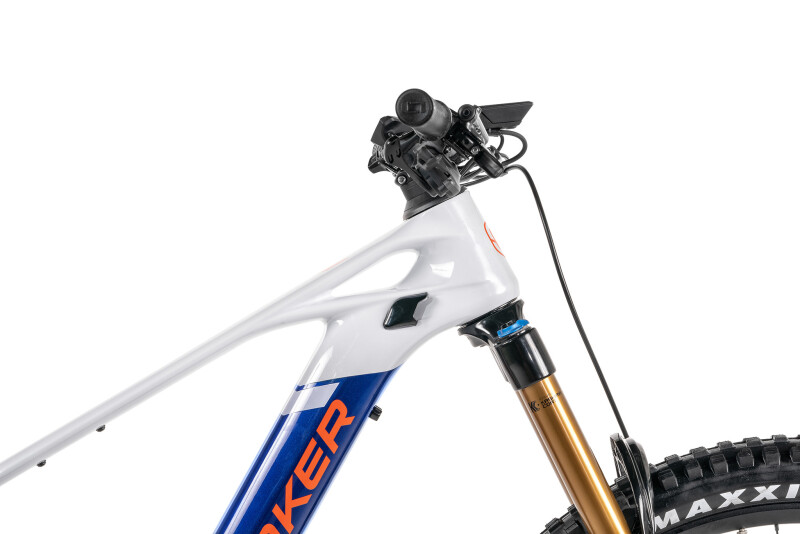

  • Frame: Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
  • Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 490mm
  • Rear shock: Fox Float DPS Factory Kashima, 205x65mm. Settings: Compression 3 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
  • Shock settings: Medium compression, Medium rebound, 0.4 volume spacer

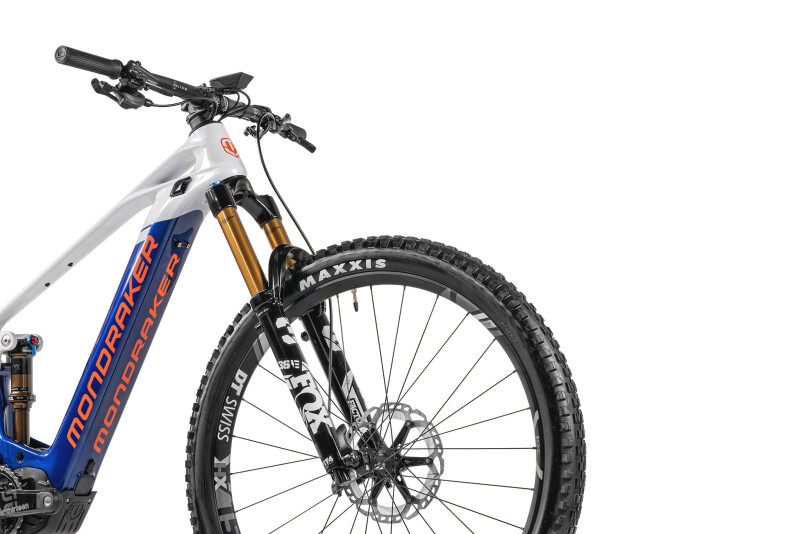

  • Fork: Fox 36 29 Float FIT4 EVOL Factory Kashima, 160mm, e-bike optimized, tapered steerer tube, Boost 15x110mm axle, 44mm offset, 68mm OD crown. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
  • Headset: Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
  • Stem: Onoff Krypton FG 30mm, 6061 forged alloy, 31.8mm barbore
  • Handlebar: Onoff Krypton Carbon 1.0, rise: 25mm, width: 780mm, 9º backsweep, 5º upsweep, 31.8mm barbore
  • Grips: Onoff Desert, 1lock-on, 135mm, sizes: S/M L/XL
  • Seatpost: Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm
  • Saddle: Fizik Antares R7
  • Front brake: Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin
  • Rear brake: Shimano XT M8120, 4 piston caliper, MT810 ICE-Tech 203mm CenterLock rotor, resin pads with fin
  • Brake lever: Shimano XT M8100, ergonomic antiskid lever with servo wave, tool less reach adjust, free stroke adjust
  • Rims: DT Swiss HX1501 Spline One 29, 30mm internal width, tubeless ready, 28 spokes
  • Spokes: DT Hybrid SP, straightpull
  • Front hub: DT 240, Boost 15x110mm, CenterLock
  • Rear hub: DT 240, Boost 12x148mm, 24T Ratchet system, CenterLock
  • Front tire: Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
  • Rear tire: Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
  • Crankset: E.13 TRS Race carbon ebike, 165mm
  • Rings: Shimano E8000 34T, steel, 104 BCD
  • Chain: Shimano XT M8100, 12s, Quick-link
  • Rear derrailleur: Shimano XT M8100, SGS, Shadow+, 12s
  • Shift levers: Shimano XT M8100, Rapid Fire Plus, 12s
  • Casette: Shimano XT M8100 10-51T Hyperglide+, 12s
  • Derailleur hanger: Mondraker M068
  • Weight: 21.5 kg
  • Display: Bosch Kiox
  • Motor: Bosch Performance Line CX Cruise (25Km/h) GEN4
  • Battery: Bosch Powertube 625Wh

For more information about this article from Mondraker click here.
