Lynskey Performance Designs (USA) – "We design our full suspension frames for those with the need for strength and speed — giving you the pedaling efficiency to power up and bomb down the trail. The Lynskey Ridgeline FS 29-120 employs a split pivot (four bar) style rear end to deliver hardtail-like power to the pedals and crisp steering response; but most importantly the ability to absorb all types of terrain — keeping rubber down and the rider in control", explained Lynskey. "Every Lynskey full suspension mountain bike frame is hand-built by Lynskey founder and master bike builder David Lynskey. Hand-built in Tennessee — Made to go Fast", they concluded.









Frame Specifications:

• 148 Boost spacing specific
• 1X specific
• 2.5" tire clearance

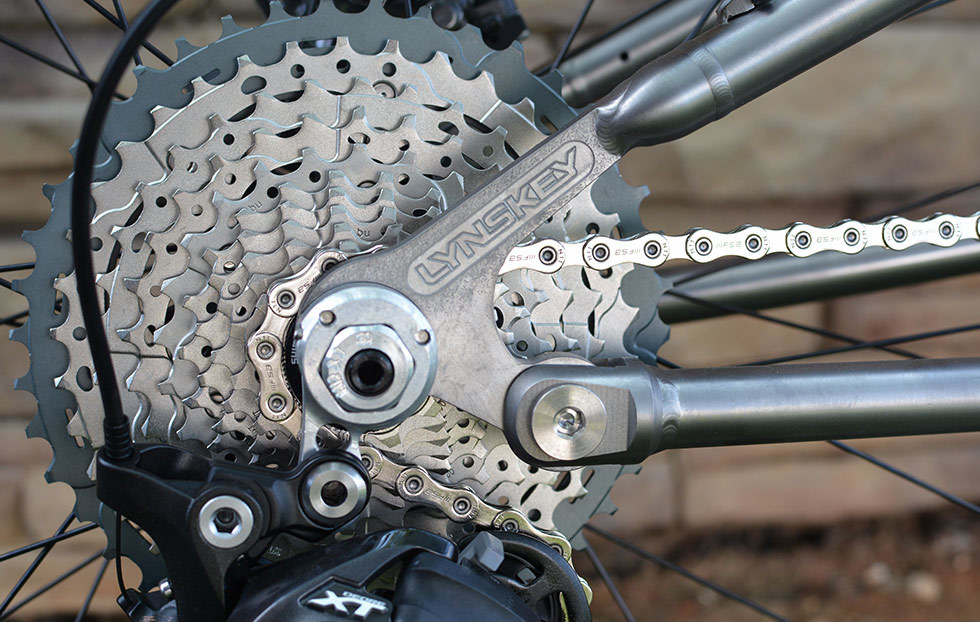

• Horst link pivot design rear end
• Enhanced main pivot design utilizing IGUS Bushings
• Fully tuned 3V/2.5AL aerospace grade titanium tubeset for stiffness, stability, precise handling, durability and comfort
• 2018 FOX Float DPS Performance Shock (standard):
  • New lighter, one-piece Evol air sleeve improves responsiveness and sensitivity
  • New updated valve design improves both rebound and compression flow
  • New - available in both imperial and metric sizes
  • DPS damper with three positions to match any terrain

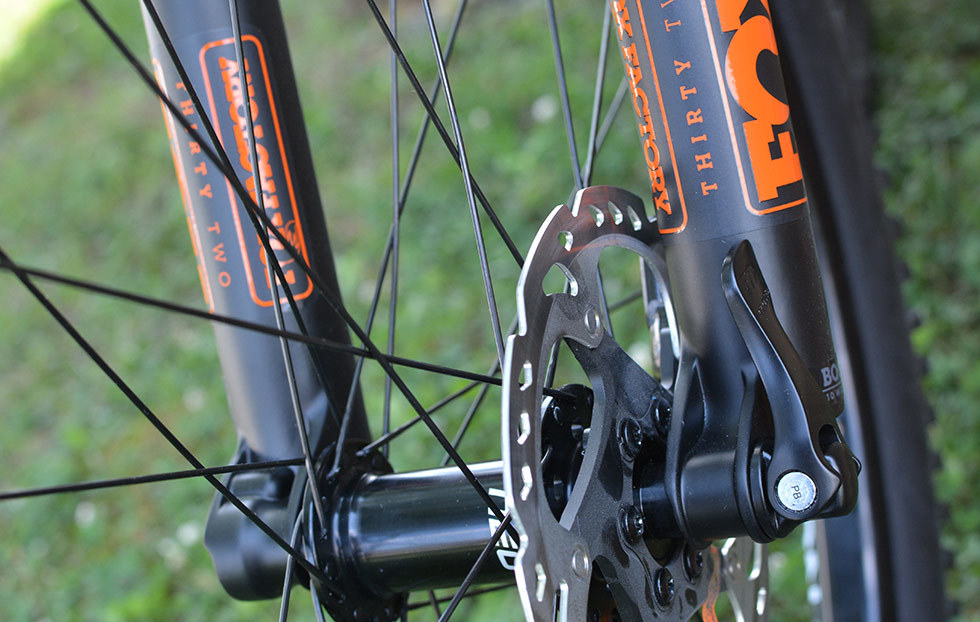

• 2018 Fox 32 Performance Fork (standard):
  • Float Evol air spring adds plushness
  • Lightweight design to get you up every mountain
  • Lockout for increased efficiency
  • FIT4 three position damper for improved control
• Headtube Design - Tapered/Integrated
• Bottom Bracket Type - 73mm Threaded
• Seatpost Diameter - 31.6mm
• Seat Tube Diameter - 38.1mm
• Wheel Size - 29"
• Max Tire Width - 2.5"
• Dropouts - 12x148 Thru Axle Fixed Recommended DT Swiss 12x1mm thread pitch
• Rear Spacing - 148mm
• Brake Type - Disc

Build Shimano SLX - Fox Racing:

• Rear Shock - Fox Float DPS Performance Series Rear Shock 7.875 x 2.0
• Fork & Axle - Fox Float Performance Series 120mm Travel Front Fork
• Shifter - Shimano SLX M7000 11 Speed Shifter
• Brake Levers - Magura MT2 Brake Lever
• Disc Brake Calipers - Magura MT2 Brake Caliper
• Rear Brake Adaptor - IS to Post Mount Adaptor
• Brake Rotors - Storm SL 160mm Rotor
• Rear Derailleur - Shimano SLX RD-M7000 11 Speed Rear Derailleur GS Cage(Shadow)
• Cassette - Shimano SLX CS-M7000 11 Speed Cassette 11-42t
• Crankset - Race Face Ride XC 32t w/ Bash Ring 175mm Crank Arm Length
• Bottom Bracket - Race Face Team XC Bottom Bracket
• Rear Axle - 12x148 Rear Axle
• Wheelset - FSA Afterburner Wider 29 Wheelset
• Tire - WTB Trail Boss 29 x 2.25
• Tube - Presta 29 x 1.9/2.3" tube
• Handlebar - Race Face Ride XC Low Rise Handlebars
• Grip - Original Trail Grip
• Stem - Race Face Ride XC 31.8mm
• Headset - Orbit C-40-ACB Integrated Headset
• Headset Spacer - FSA Headset Spacer 10mm - Blk
• Headset Spacer - FSA Headset Spacer 5mm - Blk
• Seatpost - Race Face Ride XC 31.6X375 Seatpost
• Saddle - Lynskey Pro Saddle - Blk

Build Shimano XT - Fox Racing:

• Rear Shock - Fox Float DPS Performance Series Rear Shock 7.875 x 2.0
• Fork & Axle - Fox Float Performance Series 120mm Travel Front Fork
• Shifter - Shimano XT M8000 11 Speed Shifter
• Brake Levers - Shimano XT M8000 Brake Lever
• Disc Brake Calipers - Shimano XT M8000 Brake Caliper
• Rear Brake Adaptor - IS to Post Mount Adaptor
• Brake Rotors - Storm SL 160mm Rotor
• Rear Derailleur - Shimano XT RD-M8000 11 Speed Rear Derailleur GS Cage(Shadow)
• Cassette - Shimano XT CS-M8000 11 Speed Cassette 11-42t
• Crankset - Race Face Ride XC 32t w/ Bash Ring 175mm Crank Arm Length
• Chain - FSA Team Issue 11speed Chain
• Bottom Bracket - Race Face Team XC Bottom Bracket
• Rear Axle - 12x148 Rear Axle
• Wheelset - FSA Afterburner Wider 29 Wheelset
• Tire - WTB Trail Boss 29 x 2.25
• Tube - Presta 29 x 1.9/2.3" tube
• Handlebar - Race Face Ride XC Low Rise Handlebars
• Grip - Original Trail Grip
• Stem - Race Face Ride XC 31.8mm
• Headset - Orbit C-40-ACB Integrated Headset
• Headset Spacer - FSA Headset Spacer 10mm - Blk
• Headset Spacer - FSA Headset Spacer 5mm - Blk
• Seatpost - Race Face Ride XC 31.6X375 Seatpost
• Saddle - Lynskey Pro Saddle - Blk
