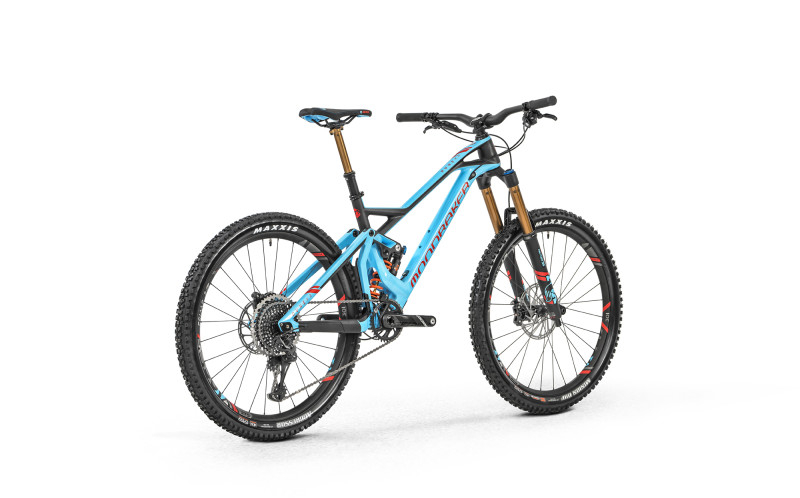

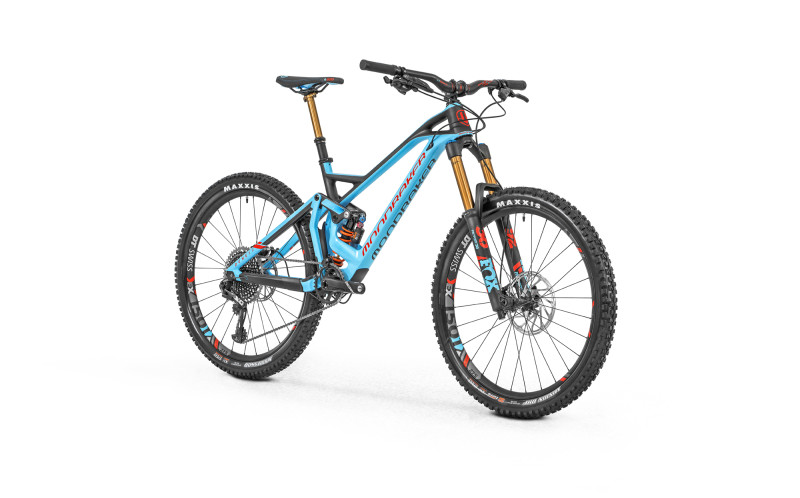

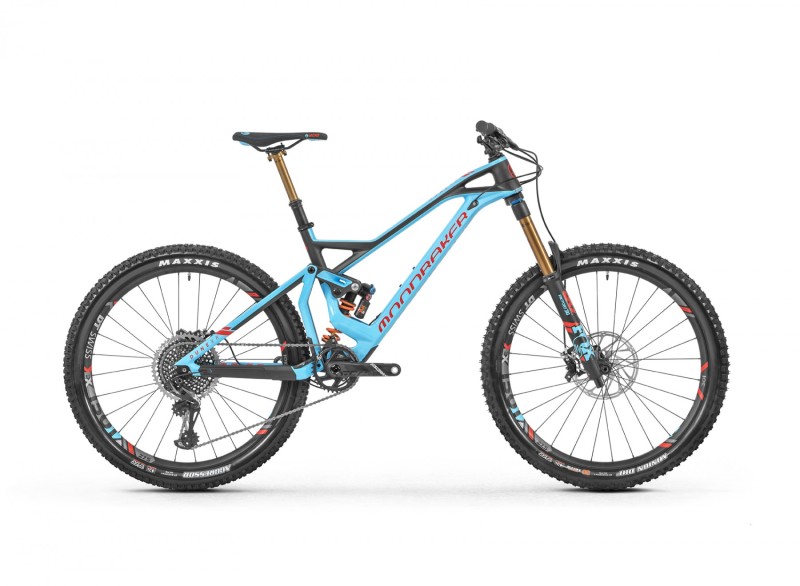

Mondraker (Spain) - New Dune Carbon 2019.

Dune Carbon XR Specifications:

• Frame: Dune 27´5 Stealth full Carbon, Zero Suspension System, 170mm travel, Forward Geometry, carbon upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, MAX. capacity sealed bearings, HHG internal cable routing, ISCG 05, dedicated 1x drivetain design, ISCG 05 carbon protector, carbon mudguard. *Geometry kit included
• Sizes: S: 380mm / M: 420mm / L: 470mm / XL: 510mm
• Rear shock: Fox DHX2 2Pos Lever Factory Kashima, 205x65mm. Settings: Open/Firm, high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring, Trunnion top mount, 22.2x10mm bottom bushings
• Shock setting: Light compression. Spring rate: S size 400 lbs, M size 450 lbs, L/XL size 500 lbs
• Fork: Fox 36 27´5 Float FIT GRIP2 EVOL Factory Kashima, 170mm, tapered steerer tube, 15x110mm axle, offset 37mm. Settings: high and low-speed compression, high and low-speed rebound, air preload
• Headset: Onoff Titan tapered for 1-1/8” to 1-1/2” head tube ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º
• Stem: Onoff Stoic FG 30mm, 6061 forged alloy, 35mm barbore
• Handlebar: Onoff Stoic Carbon, rise: 12mm, width: 780mm, 9º backsweep, 5º upsweep, 35mm barbore
• Grips: Onoff Diamond, 1lock-on, 130mm
• Seatpost: Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 365x100mm, M size: 406x125mm, L/XL size: 456x150mm
• Saddle: SDG Fly MTN, Light PU foam, titanium rail, Cordura sides
• Front brake: Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
• Rear brake: Sram Code RSC, oversized 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
• Brake lever: Sram Code RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
• Rim: DT Swiss EX1501 Spline One 27´5, 30mm internal width, tubeless ready, 28 spokes
• Spokes: DT Competition, straight pull
• Front hub: DT 240, 15x110mm, IS 6 bolts
• Rear hub: DT 240, 12x148mm, 36T Ratchet system, IS 6 bolts, XD freehub
• Front tyre: Maxxis Minion DHF 27´5x2.5 WT, Tubeless ready, 3C MAXX TERRA compound, Exo protection, 60TPI, folding bead
• Rear tyre: Maxxis Aggresor 27´5x2.5, Tubeless ready, dual compound, Exo protection, 60TPI, folding bead
• Crank: Truvativ Descendant carbon Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S/M size: 170mm, L/XL size: 175mm
• Rings: 34T, alloy, X-Sync 2
• Bottom bracket: Sram DUB BSA, sealed bearings, 73mm
• Pedals: /
• Chain: Sram NX Eagle, 12s
• Front derailleur: /
• Rear derailleur: Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-actuation 1:1
• Lever: Sram Trigger X01 Eagle, 12s, X-Actuation 1:1
• Sprocket: Sram XG-1295, 10-50T, 12s
• Hanger: Mondraker M065
• Others: *Geometry kit included: chainstay and brake adaptors for 440mm. Steering cups: +/- 1º
• Weight without pedals: 13,800
