The original design of the rear triangle guarantees excellent lateral stiffness and power transmission without reducing vertical comfort. An enlarged down tube, which provides stiffness and maneuverability, and a head tube make this frame really complete.

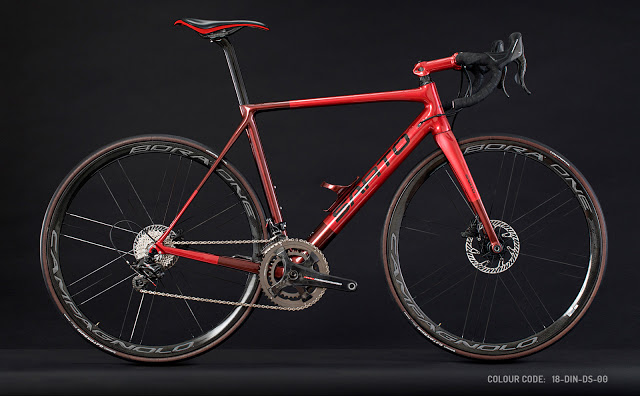

Dinamica Disc differs from the model with standard brakes for its fork and rear triangle, which are designed and manufactured to be compatible with disc brakes. The standard used for brakes is the flat mount with thru-axle, 100x12 front and 142x12 rear.
Technical Specs:
- Custom Made
- Weight: 900 g (raw)
- Stiffness value: 130 N/mm
- Outer lamination: 3K
- Inner lamination: M46J
- Head tube: 1”1/8 - 1”½
- PRESS FIT 86.5 bottom bracket
- Internal brake and gear cables guide
- Seat tube Ø 34,9 mm for seat post 31,6 mm
- Integrated seat clamp
- Flat mount disc brakes
- TA R142x12mm - F100X12mm
Options:
- Integrated seat tube
- BSA-BB30-PF386 bottom bracket
- Optimization for gear Di2 - EPS
- Wireless or Universal system (mechanical/electronic Di2-EPS)
- Head tube: 1”1/8 - 1”1/4 or 1”1/8 or I7 for Chris King Headset
