New 2018 Silverback Synergy Full Suspension Carbon Bikes

New 2018 Silverback Synergy Full Suspension Carbon Bikes

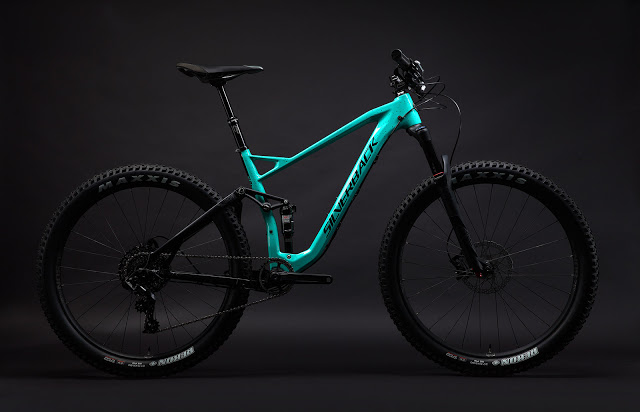

Silverback Bikes (Germany) – The Synergy range with its 1/3 Concept creates a highly adaptable platform to enable the carbon front triangle full suspension trail bike to cover the three wheel options of Slim (29” with 2.2” tyres), Slimfat (27.5” with 3” tyres), and Fat (26” with 4” tyres) by using different rear triangles. This trail frame has great strength, stiffness, durability and low weight as its core. The bikes use 120mm of front suspension, while the IDS Revo rear suspension has 110mm of plush, responsive and predictable travel to attack the trails with speed and precision.

Ultimate Versitility:
1-in-3 Concept means that the Synergy is prepared for anything. The Synergy frame takes 26×4.0″, 27.5×3.0″, and 29×2.25″ with 3 easily swapped rear triangles.

SBC Thru Axle:

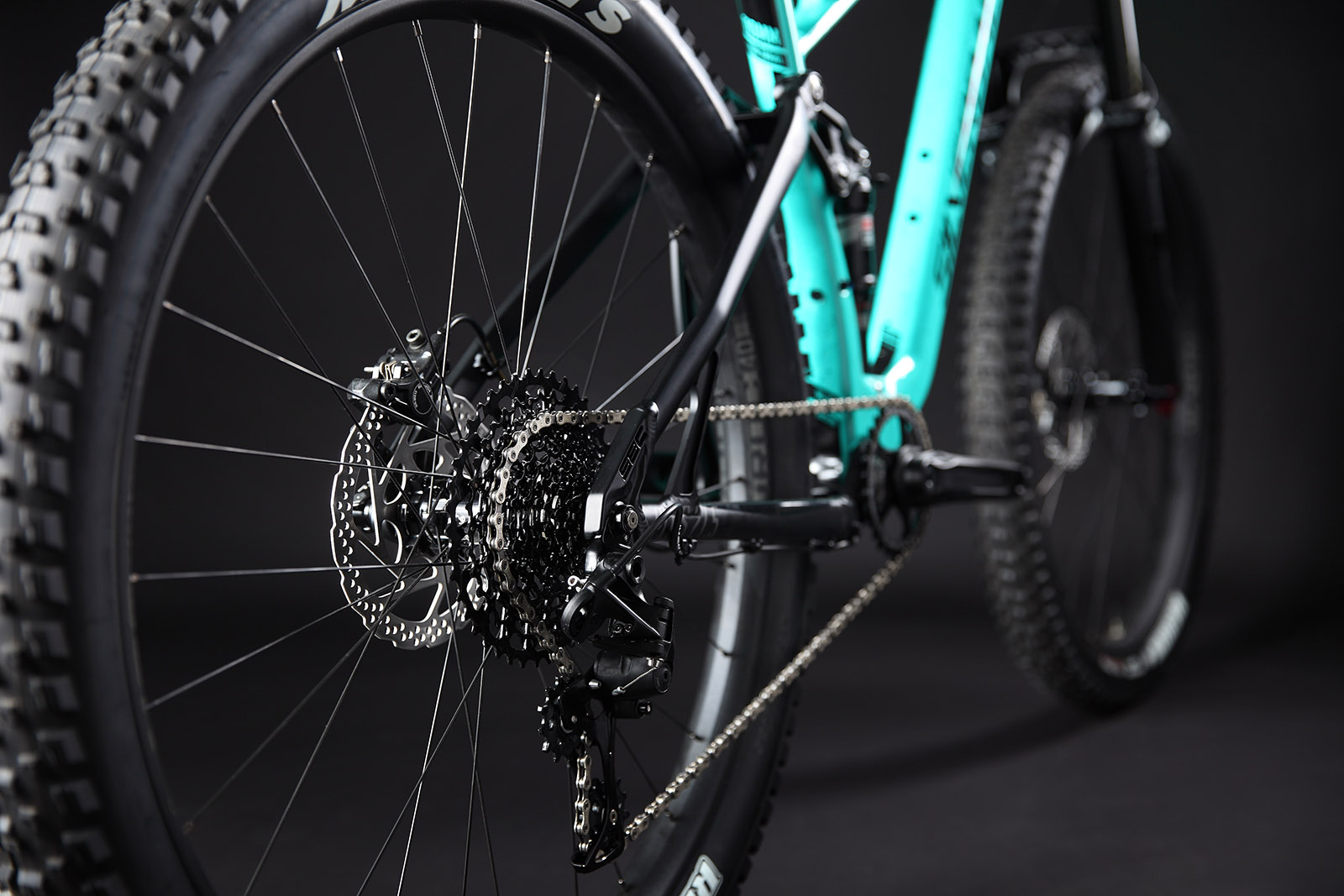

The SBC Rear Thru Axle provides a stiff and secure fastening of the rear wheel. The custom design integrates a threaded hanger that can be easily replaced should there be damage.

Low-Lined Cable Management:
Cables are routed below the downtube for a neat appearance and easy maintenance. Cables protect the downtube from debris kicked up by the front wheel, and cable rub is prevented with thoughtfully places cable bosses.

Tri-Torsion Bridge:
The tri-torsion bridge is used to maximise rear triangle stiffness for a responsive and precise ride feel. A stiff rear triangle also helps to prolong bearing life and ensure that the bike rides like it was designed to.

  • Carbon Full Suspension 275+
  • F: 120mm R: 110mm
  • 13.96kg
  • Rockshox Reba RL Boost
  • SunRingle Duroc AL Rims with SunRingle Hubs
  • Sram GX/NX 1×11 Drivetrain
  • SBC Dropper Post
  • Converts to Fatbike and 29er

Synergy Plus Specifications:
  • Frame - SB Trail Carbon Suspension, Tapered 1-1/8”-1.5” Headtube, Alloy 27,5+ 1in3 Concept rear triangle with IDS Revo Alloy linkages using 148 x 12mm Thru Axle Integrated Dropouts, Replaceable Alloy Hanger, X-Guide Cable management System
  • Fork - Rockshox Reba RL 29/27,5+”Boost, 120mm, Solo Air, Tapered Alloy Steerer, Crown Lockout, 15X110mm, Post Mount Disc, Diffusion Black
  • Rear Shock - Rockshox Monarch RT3, Custom Tuned, 110mm Travel
  • Rims - Hayes/SunRingle Duroc AL 40mm 27.5”+, Alloy, 32H, Black
  • Hubs - Hayes/SunRingle
  • Tyres - Maxxis Rekon 27.5” x 2.8, TR and EXO, Tubeless ready, Black
  • Stem - Sector Box, Alloy, S/M: 60mm; L/XL: 75mm, 6° x Dia 31.8mm, Black
  • Handlebar - Sector Plane Alloy Flat Top Bar, W: 740mm; Back Sweep: 9°; Up Sweep: 5°; Dia 31.8mm
  • Seatpost - SBC Dropper Post, w/Slick Shift Lever Remote and Internal Cable Routing, Dia 31.6mm, S: 350mm, M/L/XL: 400mm, Black
  • Saddle - Sector Cromo Rails
  • Brake Set - Shimano Deore BL/BR-M615, Open Hydraulic System, Rotors: Front: 180mm; Rear: 160mm, 6-Bolt, Black
  • Shifters - Sram NX – SL Trigger Shifter, 11 Speed, Black
  • Rear Derailleur - Sram NX w/ Rolling Bearing Clutch and Cage Lock, Black
  • Cassette - Sram XG-1150 11 Speed, 10-42T, Black
  • Crankset - RaceFace Aeffect, 30T, L: 175mm All Sizes, Black
  • Bottom Bracket - RaceFace, BSA

Other Options:
  • Synergy Slim
  • Synergy Fat
  • Frame Synergy

For more information about this article from Silverback Bikes click here.

Source link
