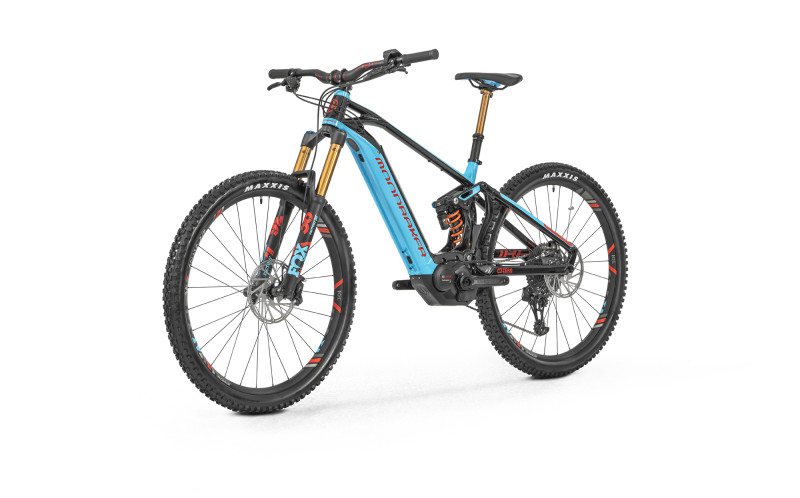

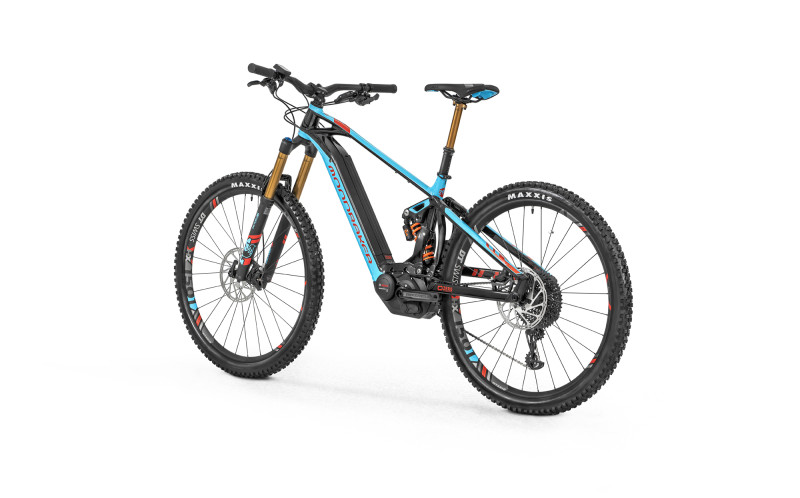

Mondraker (Spain) - Press release: Meet the New Level RR. 29'' wheels, 170mm front and 160mm rear, super capable Zero Suspension with coil shocks and Forward Geometry on our most aggressive e-MTB ever!
Level RR Specifications:
- Frame: Level 29 6061 Alloy Stealth Evo, Zero Suspension System, 160mm travel, Forward Geometry, intenal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, exclusive plastic motor covers, shock mudguard
- Sizes: S: 380mm / M: 420mm / L: 470mm / XL: 500mm
- Rear Shock: Fox DHX2 2Pos Lever Factory Kashima, 205x65mm. Settings: Open/Firm, high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring, Trunnion top mount, 22.2x10mm bottom bushings
- Shock Setting: Light compression. Spring rate: S size 350 lbs, M size 400 lbs, L/XL size 450 lbs
- Fork: Fox 36 29 Float Fit Grip2 Evol Factory Kashima, 170mm, e-bike optimized, tapered steerer tube, 15x110mm axle, offset 44mm. Settings: high and low-speed compression, high and low-speed rebound, air preload
- Headset: Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
- Stem: Onoff Stoic FG 30mm, 6061 forged alloy, 35mm barbore
- Handlebar: Onoff Stoic Carbon, rise: 12mm, width: 780mm, 9º backsweep, 5º upsweep, 35mm barbore
- Grips: Onoff Diamond, 1lock-on, 130mm
- Seatpost: Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 365x100mm, M size: 406x125mm, L/XL size: 456x150mm
- Saddle: SDG Radar, titanium rail, light PU foam
- Front Brake: Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
- Rear Brake: Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
- Brake Lever: Sram Code RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
- Rim: DT Swiss HX1501 Spline One 29, 30mm internal width, tubeless ready, 28 spokes
- Spokes: DT Hybrid SP, straight pull
- Front Hub: DT 240, 15x110mm, IS 6 bolts
- Rear Hub: DT 240, 12x148mm, 24T Ratchet system, IS 6 bolts
- Front Tyre: Maxxis Minion DHF 29x2.5WT, Tubeless ready, 3C compound, DH casing, 60TPI, folding bead
- Rear Tyre: Maxxis Minion DHR II 29x2.4WT, Tubeless ready, 3C compound, DH casing, 60TPI, folding bead
- Crank: Bosch Performance Line CX system, PowerTube battery 500Wh , Purion on-board computer, RaceFace Aeffect ebike crankset, 165mm
- Rings: MDK 16T, narrow-wide, 6mm offfset
- Chain: Sram PC-EX1, 10s
- Rear Derailleur: Sram EX1, Type 3 roller bearing clutch, cage lock, 1x8s, X-actuation 1:1
- Lever: Sram Trigger EX1, 8s, X-Actuation 1:1
- Sprocket: Sram XG-899, 11-48T, 8s
- Hanger: Mondraker M067
- Weight without Pedals: 25,200
