Mondraker's New 2018 Vantage MTB Bikes Range

By Mondraker
Posted on Aug 31, 2017

Mondraker (Spain) – "2018 Vantage MTB Bike is the perfect mix between All Mountain skills and the hardtail downhill bike from the 90’s", shared Mondraker about the new 2018 Vantage.

Vantage R:

Features:

Frame - Vantage 27´5 6061 Alloy Stealth Evo, hydroformed tubing, Forward Geometry, Tapered head tube, BSA bottom bracket, telescopic seatpost internal routing, 12x148mm rear axle
Sizes - S / M / L / XL
Fork - RockShox Recon RL 27´5 Solo Air, 140mm, Tapered head tube, 15x110mm Maxle axle. Settings: rebound, compression adjustment at low-speed to lock, air preload
Headset - Onoff Saturn Tapered for 1-1/8” -> 1/5” head tube. Top bearing 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem - Onoff Stoic FG 30mm. 6061 forged aluminium. 31.8mm barbore
Handelbar - Mondraker Aluminium 6061 T6 double butted. Specific Vantage R design. 1” rise, 760mm width, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips - Onoff Diamond, 1lock-on, 130mm
Seatpost - Onoff Notion 0-R 2014 T6 Alloy 2D forged. 31.6mm diameter, 400mm length.
Saddle - Exclusive Mondraker Vantage R design
Front brake - Sram Level T 180mm, centerline 6 bolts one-piece rotor, organic pads
Rear brake - Sram Level T 180mm, centerline 6 bolts one-piece rotor, organic pads
Brake lever - Sram Level T, brake lever reach adjust, 2 bolts clamp Matchmaker compatible, ambidextrous lever mount
Rim - MDK-EP1 27´5 TLR ASY, internal width 27mm, tubeless ready, 32 spokes
Spokes - CN round stainless steel
Front hub - MDK DC511 15x110mm, sealed bearings, IS 6 bolts mount
Rear hub - MDK GW 12x148mm, sealed bearings, IS 6 bolts mount
Front tyre - Maxxis Ardent 27’5x2.40, Single compound, 60 TPI, Wire
Rear tyre - Maxxis Ardent 27’5x2.40, Single compound, 60 TPI, Wire
Crank - Sram NX16000 series aluminium, 24mm axle, chain ring with Direct Mount, standard Boost, 170mm crank arms in sizes S/M and 175mm in sizes L/XL
Rings - 30T, steel, X-SYNC 1x11 technology
Bottom bracket - Sram GXP XR, sealed bearings, 73mm
Chain - Sram PC1031 10s
Rear derailleur - Sram GX, long cage, Exact actuation
Lever - Sram Trigger X5, 10s, 1:1 Actuation
Sprocket - Sunrace CSMCS3, 11-42T, 10s
Hanger - Mondraker M062R
Weight without pedals - 12.8Kg

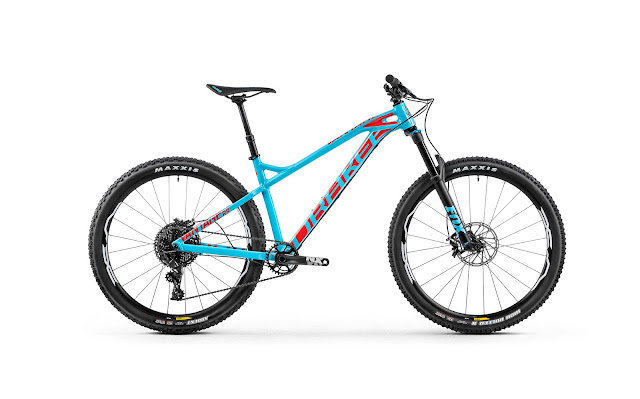

Vantage RR:

Features:

Frame - Vantage 27´5 6061 Alloy Stealth Evo, hydroformed tubing, Forward Geometry, Tapered head tube, BSA bottom bracket, telescopic seatpost internal routing, 12x148mm rear axle
Sizes - S / M / L / XL
Fork - Fox 34 27´5 Rhythm Sweep adjust EVOL, 140mm, lever with 2 positions plus intermediate positions in low/high-speed compression, Tapered head tube, 15x110mm axle. Settings: rebound, compression adjustment at high/low-speed to lock, air preload
Headset - Onoff Saturn Tapered for 1-1/8” -> 1/5” head tube. Top bearing 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem - Onoff Stoic FG 30mm. 6061 forged aluminium. 31.8mm barbore
Handelbar - Mondraker aluminium 6061 double butted. Exclusive Vantage RR+ design, 0.5” rise, 760mm width, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips - Onoff Diamond, 1lock-on, 130mm
Seatpost - Onoff Pija Dropper 31.6mm, internal hose guide. Size S: 337x100mm, size M/L/XL: 387x125mm
Saddle - Exclusive Mondraker Vantage RR design
Front brake - Sram Guide R 180mm, lightweight 4-piston dual-diameter caliper, centerline 6 bolts one-piece rotor, semi-metallic pads
Rear brake - Sram Guide R 180mm, lightweight 4-piston dual-diameter caliper, centerline 6 bolts one-piece rotor, semi-metallic pads
Brake lever - Sram Guide R, tools-free Reach adjust, ambidextrous lever mount
Rim - Mavic XA 27´5, Tubeless Ready, internal width 25mm, asymmetrical rim, hookless, 24 spokes
Spokes - Mavic Steel, straight-pull
Front hub - Mavic Boost axle 15x110mm, sealed bearings, IS 6 bolts mount
Rear hub - Mavic, Boost axle 12x148mm, sealed bearings, TS-2 freehub, IS 6 bolts mount
Front tyre - Maxxis High Roller II 27´5x2.3 Tubeless Ready, Dual compound, Exo Protection, 60TPI, foldable
Rear tyre - Maxxis Ardent 27´5x2.4 Tubeless Ready, Dual compound, Exo Protection, 60TPI, foldable
Crank - Sram NX1, forged 6066 aluminium, 24mm axle, chainring Direct mount, 170mm cranks in sizes S/M and 175mm in sizes L/XL
Rings - 32T, X-SYNC 1x11 technology
Bottom bracket - Sram GXP XR, sealed bearings, 73mm
Chain - Sram PC-1110 11s
Rear derailleur - Sram NX Type 3 with Roller Bearing Clutch and Cage Lock, long cage, X-Horizon system
Lever - Sram Trigger NX1, 11s. Zero Loss technology, Exact actuation
Sprocket - Sunrace CSMS8, 11-46T, 11s
Hanger - Mondraker M062R
Weight without pedals - 12.4Kg

Vantage:

Features:

Frame - Vantage 27´5 6061 Alloy Stealth Evo, hydroformed tubing, Forward Geometry, Tapered head tube, BSA bottom bracket, telescopic seatpost internal routing, Qr 9mm rear axle
Sizes - S / M / L / XL
Fork - RST Blaze 27’5 TNL 130mm, 1-1/8” steering tube, 9mm QR axle, Settings; Hydraulic lock-out
Headset - Onoff Saturn Tapered for 1-1/8” -> 1/5” head tube. Top bearing 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem - Onoff Stoic FG 30mm. 6061 forged aluminium. 31.8mm barbore
Handelbar - Mondraker Aluminium 6061 T6 double butted. Specific Vantage design. 1" rise, 760mm width, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips - Onoff Wave, Kraton/gel, 130mm
Seatpost - Onoff Notion 0-R 2014 T6 Alloy 2D forged. 31.6mm diameter, 400mm length
Saddle - Exclusive Mondraker Vantage design
Front brake - Tektro HDM-285, hydraulic disc brake, 180mm rotor
Rear brake - Tektro HDM-285, hydraulic disc brake, 160mm rotor
Brake lever - Tektro hydraulic brake, with reduced size lever to brake with 2 fingers
Rim - MDK-EP1 27’5, 24mm external width, 32 spokes
Spokes - CN stainless steel round
Front hub - MDK-EP1, 9mm QR axle, cup & cone ball bearings, IS 6 bolts
Rear hub - MDK-EP1, 9mm QR axle, cup & cone ball bearings, IS 6 bolts, interchangeable freehub
Front tyre - Kenda Honey Badger 27’5x2.20, single compound, 30 TPI, Wire
Rear tyre - Kenda Honey Badger 27’5x2.20, single compound, 30 TPI, Wire
Crank - Suntour XCM 2x9s, 170mm length cranks in sizes S/M and 175mm in sizes L/XL
Rings - 36/22T aluminium 36t chainring, interchangeable design
Bottom bracket - Shimano Octalink BBES301
Pedals - Wellgo LU-895N platform
Chain - KMC Z99
Front derailleur - Microshift FD-M642 bottom clamp, double ring
Rear derailleur - Shimano Alivio RD-M4000 SGS, long cage, 9s
Lever - Shimano Acera SL-M300, rapidfire plus, 9s
Sprocket - Sunrace CS-M909 11-34t 9s
Hanger - Mondraker M053
