Series 3 or 4 Frame:
The Gestalt features a butted and formed Series 3 6061 aluminum frame with internal routing, disc brakes, and rack and fender eyelets. Series 4 frames add a 6066 aluminum top tube, Naild 12.3.9 locking quick release thru-axles, and a tapered headtube.
Beyond Road Geometry:
Beyond Road Geometry offers a blend of endurance road handling with enhanced stability for off pavement use.

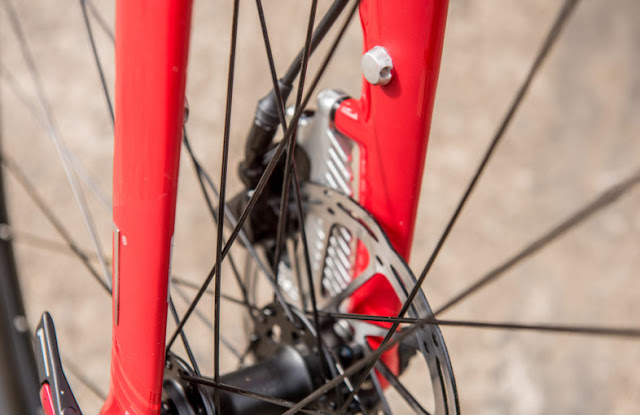

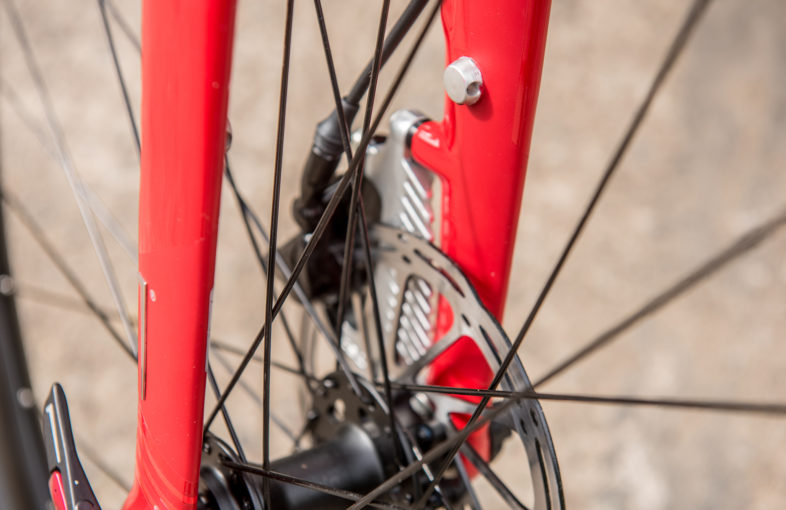

Disc Brakes:
Disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance.
Tire Clearance:
The Gestalt frame and fork has clearance for up to 700Cx35 tires.
Gestalt X11 Specifications:
- Frame - Series 4 Beyond Road, 6066/6061 Aluminum, 700C Wheels, Tapered Head Tube, Relieved BB, Internal Cable Routing, Post Mount Disc, 142x12mm Naild 12.3.9 Thru-Axle
- Fork - Naild NavIt Carbon, Tapered Alloy Steerer, Naild Locking Thru-Axle, IceIt Brake Cooling Fin
- Rims - Marin Aluminum Double Wall, 21mm Inner, 30mm Tall, Disc Specific, Tubeless Compatible
- Hub Rear - Forged Aluminum Alloy, 142x12mm, Alloy Axle, Quad Cartridge Sealed Bearings, SRAM XD Driver, 6-Bolt Disc, 32H
- Hub Front - Forged Aluminum Alloy, 100x15mm, 6-Bolt Disc, 32H
- Spokes - Double Butted Stainless
- Tires - Schwalbe G-Oone Evo, 700Cx30, Kevlar Puncture Protection, Folding Bead, Tubeless Compatible
- Derailleur Rear - Sram Apex 1 11-Speed
- Shift Lever - Sram Apex 1x11 Speed
- Crankset - FSA Gossamer Pro, Megatooth 42T Chainring, BB386EVO Alloy Spindle
- Bottom Bracket - FSA MegaExo Threaded
- Chain - KMC X11
- Cassette - Sram XG-1150 11-Speed, 10-42T
- Brakes Front - Sram Apex Hydraulic Disc, 160mm Rotor
- Brakes Rear - Sram Apex Hydraulic Disc, 160mm Rotor
- Brake Levers - Sram Apex 1 DoubleTap Hydraulic 1x11-Speed
- Handlebar - Marin Butted Alloy, Compact 12º Flared Drop, Flat Top
- Stem - Marin 3D Forged Alloy
- Grips - Marin Shock Absorbing Perforated Tape
- Headset - FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 3/8”
- Seatpost - Marin Carbon
- Saddle - Marin Beyond Road Concept Elite
- Pedals - Commute Platform
- Extras - Naild F/R Locking Thru-Axles, 12.3.9 QR Mechanism, LocIt Lever Technology
Other Gestalt Models:
- Gestalt X10
- Gestalt 2
- Gestalt 1
