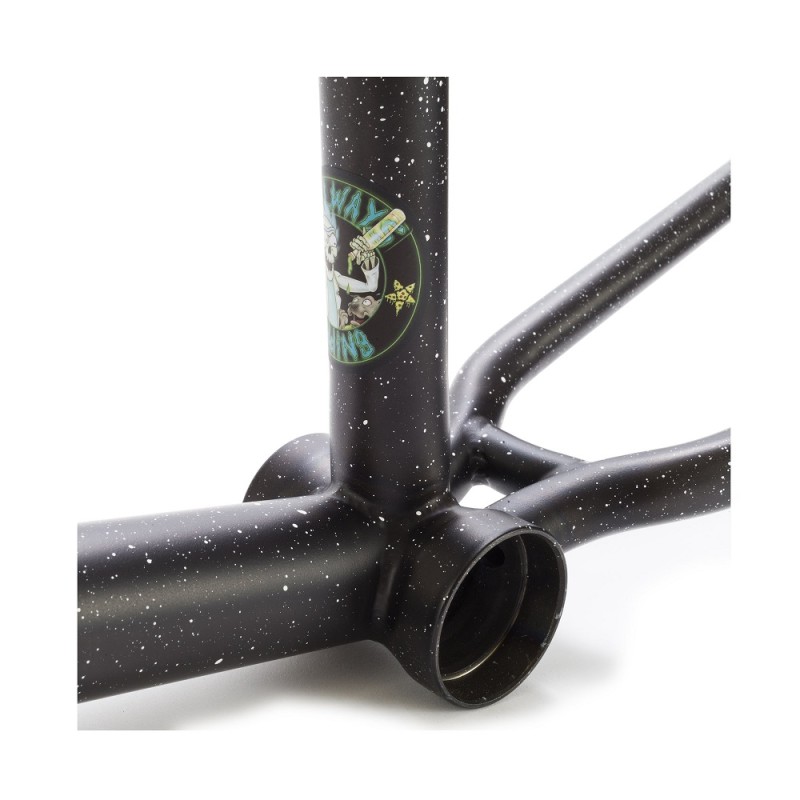

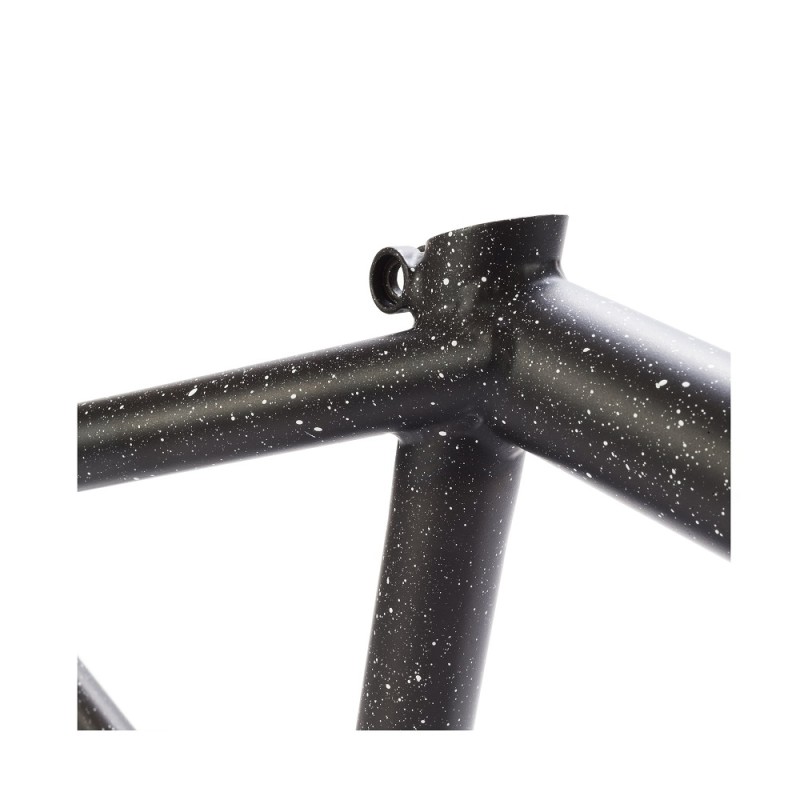

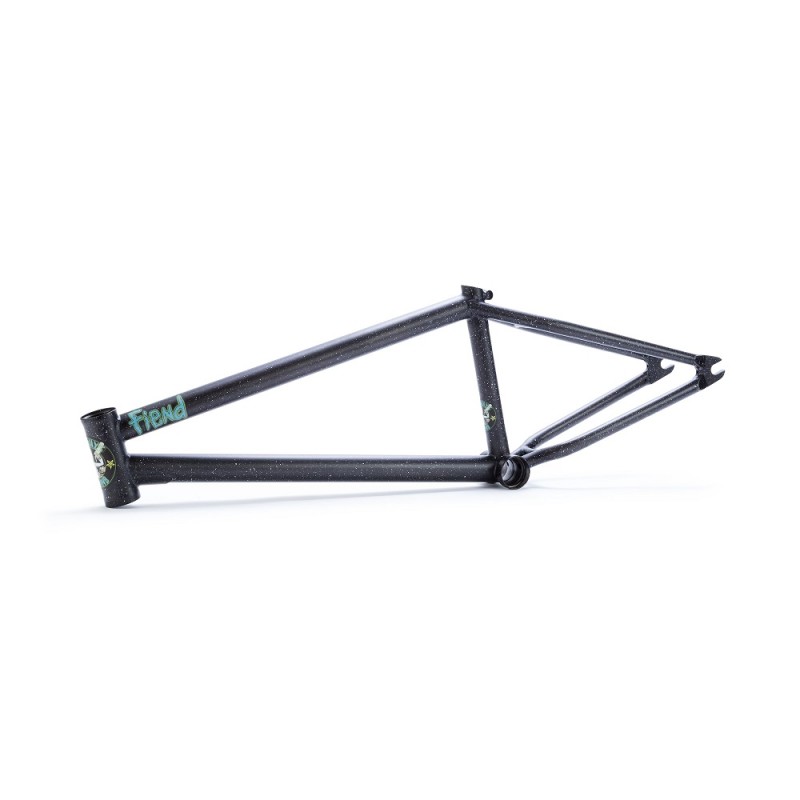

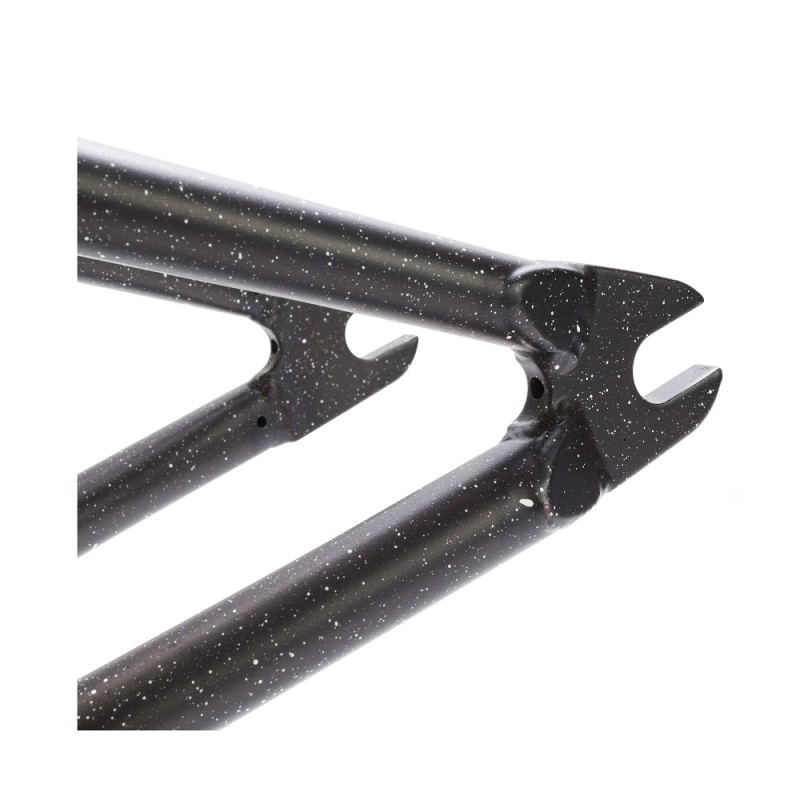

Fiend BMX (United States) - Designed by Garrett Reynolds. Constructed from heat-treated 4130 chromoly with an internal gusset in the toptube and an external gusset on the downtube. The frame’s tubing is double butted with a heat-treated Mid BB shell and headtube, externally butted seat tube with integrated post clamp and 8mm thick investment cast dropouts with integrated chain tensioners. Available with or without removable seat stay brake mounts and cable guide.

Geometry:

• 20.5″, 20.75″ & 21″ top tube lengths
• HT 75.5*
• ST 71*
• CS 13″
• 9″ seat tube height (bottom bracket to top tube, center to center)
• BB height: 11.625″
• Weight: 5lbs. @ 20.75″
