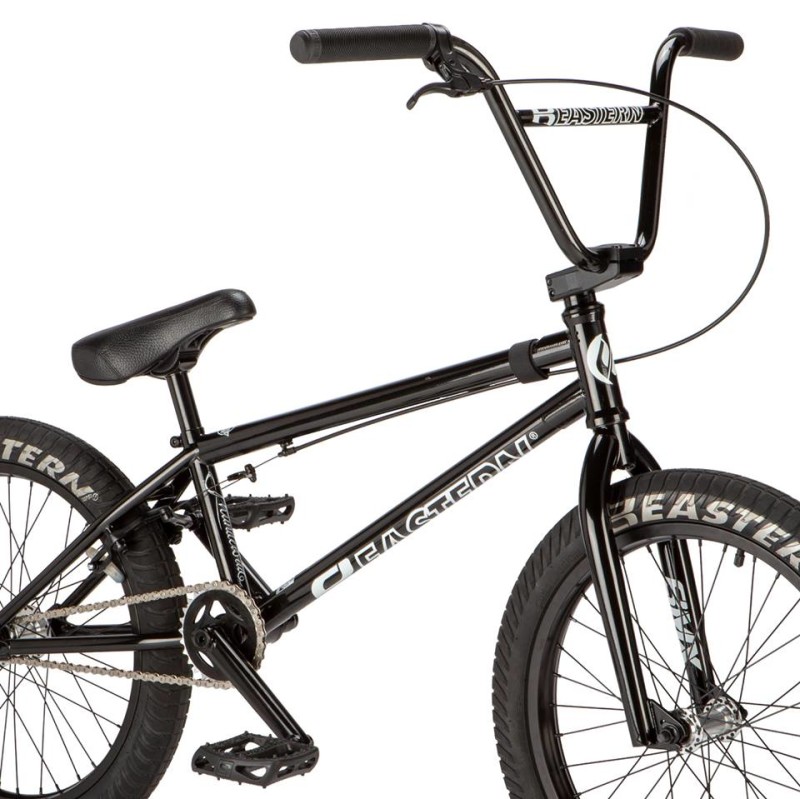

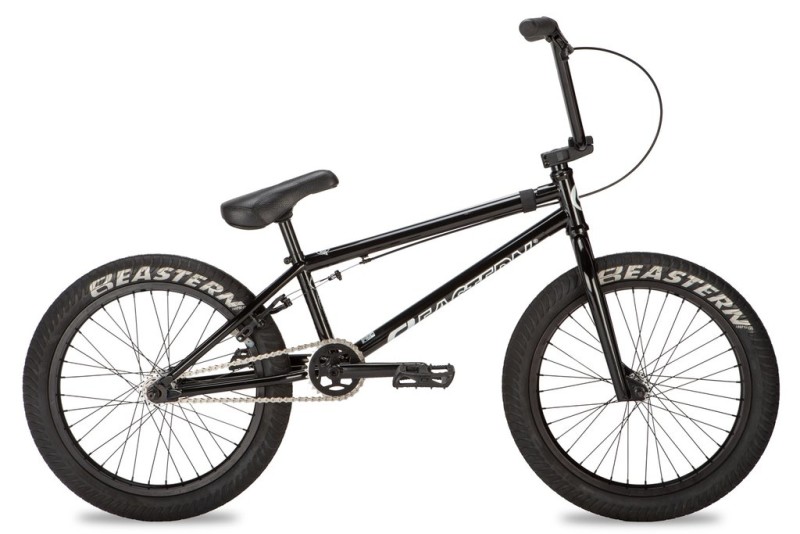

Eastern Bikes (United States) - Built for the trails, the pro level Eastern Thunderbird V2 features a full chromoly frame with chromoly fork and bars for lightweight performance. This ultimate trail jumper is dialed in with fully sealed hubs, 3-piece 48 Spline cranks, Eastern Compressor Top Load stem, Curb Monkey 100psi tires, alloy sprocket, double wall rims, 2 Pegs and Odyssey pedals.
Features:
- 25.6 Lbs
- Chromoly Frame
- Chromoly Fork w/ 1pc Steerer Tube
- Chromoly Bars
- Sealed Hubs
- 3 Piece 48 Spline Cranks
- Mid BB
- Integrated Headset
- Eastern Grips
- Alloy Eastern Phorcys Sprocket
- Pivotal Seat
- Double Wall Front and Rear Rims
- 2.4" Eastern Curb Monkey 100psi Tires
- Odyssey Twisted Pedals
- 2 Cold Steel Pegs
Specs:
Frame:
- Thunderbird 20", Full Chromoly, Removable Brake Mounts, Mid BB, Internal Headset
- Top Tube Size: 21.0″
- BB: Mid
- Headtube: Integrated
- Chainstay Length: 13.74″
- Clamp: Integrated with Frame
Bars:
- Full Chromoly 9.0"
- Upsweep/Backsweep 12⁰/1⁰
Fork:
- Full Chromoly
- Fork Rake: 28mm
Headset: Integrated 45°X45° Sealed Cartridge Bearing
Stem: Eastern 2018 Compressor Top Load, CNC Machined 6061 Missile Grade Aluminum
Grip: Eastern Riblet Grips
Crank: 3-Piece, Tubular Heat-Treated Chromoly, 48-Splined Spindle, 170mm Arm Length
Bottom Bracket: Sealed Bearing Mid
Chainwheel: Eastern Phorcys, Alloy, 28T
Chain: KMC Z510 1/2 x 1/8
Pedal: Odyssey Twisted Pedal with 9/16" Chromoly Axle
Front Brake: N/A
Front Lever: N/A
Rear Brake: U-Brake, Forged Alloy, Wide Body, Clear Brake Pads
Rear Lever: Forged Alloy Hinged Lever
Brake Cable: [S] Linear
Saddle: Medium Width Pivotal Seat
Post: Pivotal, Alloy, 200mm
Front Hub: Sealed Bearing, Forged Alloy Shell, Drilled for 36
Spokes, Female Axle System with 3/8" Allen Key Bolts
Rear Hub: Sealed Bearings, Forged Alloy Shell Drilled for 36 Spokes, 14mm Chromoly Axle
Freewheel: 9 Tooth Sealed Driver with Hub
Front Rim: Alloy, Double Wall, Drilled for 36 Spokes, For 20" Tires
Rear Rim: Alloy, Double Wall, Drilled for 36 Spokes, For 20" Tires
Spokes: 14 Gauge with Brass Nipples
Front Tire: Eastern Curb Monkey 20 x 2.40
Rear Tire: Eastern Curb Monkey 20 x 2.40
Peg: Cold Steel Pegs (2pcs)
Bikes are designed for riders 13 years old and up. *This pricing valid in USA only. Specs & pricing Subject to Change.
