Haibike (Germany) - XDURO AllMtn 2.0.

Technology:

The Haibike SkidPlate:

Made of shock-resistant plastic, the light component protects effecitvely from scratches or motor damage.

The double chain ring option:

More possibilities thanks to the Yamaha drive's unique double chain ring option. For better support on hills and higher transmission in plain areas.

The Haibike Gravity Casting interface:

The heart of the Haibike alu frame: light, highly robust and complex manufacturing with a special casting technique known from the motorcycle industry.

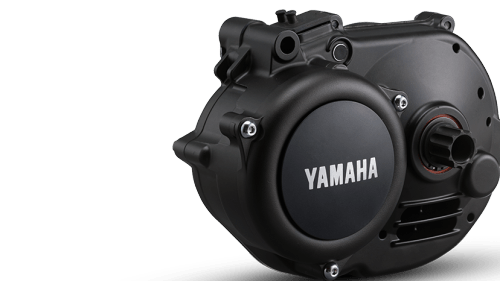

The Yamaha PW-X drive unit:

The PW-X drive unit of Yamaha was especially designed for sportive eBikes. Despite its massive 80Nm torque, it is extremely compact, lightweight and perfectly controllable.

The Yamaha side-switch LCD display:

1.7“ LCD display for a wide range of use with easy-to-handle screen featuring speed and battery level indication.

Specifications:

• Frame: Aluminium 6061, Gravity Casting Interface, hydroformed, Tapered head tube, thru-axle M12 (1.75) x 148mm, disc brake Post Mount, Travel: 150mm
• Drive unit: Yamaha PW-X System, 250W, 80Nm, 25km/h
• Display: Yamaha Side Switch 1.7" LCD, 7 functions
• Battery: Yamaha Lithium Ion, 500 Wh
• Charger: Yamaha quick charger 4A
• Fork: RockShox Yari RC, air, Travel: 160mm, aluminium steerer tube 1 1/8" - 1 1/2" tapered, thru-axle Boost
• Damper: RockShox Deluxe RT, air
• Shifting system: Shimano Deore M6000, 20 speed
• Front derailleur: Shimano Deore M6000
• Gear lever: Shimano Deore M6000, rapidfire
• Rear sprocket: Shimano HG50, 11-36 teeth
• Chain: KMC X10
• Chain ring: 32-44, aluminium
• Brake lever: Shimano MT501, aluminium
• Front brake: Shimano MT520, 203mm, aluminium, 4-piston disc brake
• Rear brake: Shimano MT520, 180mm, aluminium, 4-piston disc brake
• Tyres: Maxxis Minion DHF, 71-584, 27.5" x 2.8", foldable
• Rear tyre: Maxxis Minion DHR II, 71-584, 27.5" x 2.8", foldable
• Rims: Rodi Tryp 35, with eylets, hollow rim, aluminium
• Front wheel hub: Haibike Components TheHub ++ thru-axle 15x110mm
• Rear wheel hub: Haibike Components TheHub ++ Steckachse 12x148mm
• Spokes: Sapim Leader, black
• Handlebar: Haibike Components TheBar ++ 780mm
• Grips: Haibike MTB grips
• Stem: Haibike Components TheStem 2, A-head, Bar bore: 31.8mm
• Head set: A-Head Tapered, Cartridge, aluminium
• Saddle: Haibike Components TheSaddle
• Seat post: XLC AllMtn, Remote, telescope, 31.6mm
• Pedals: MTB platform pedal, aluminium
• Weight: 23.3kg
• Total perm. weight: 120kg
• RRP: 3.999 €
• Wheel size: 27.5"
