Clean Trials (Spain) - New production from the sucessfull frame Clean X1, modified with some improvements from the first series.

Made in high quality 6061 T6 aluminium alloy, with CNC machined headtube, BB Shell, brigde and dropouts in 7075 T6 aluminium.

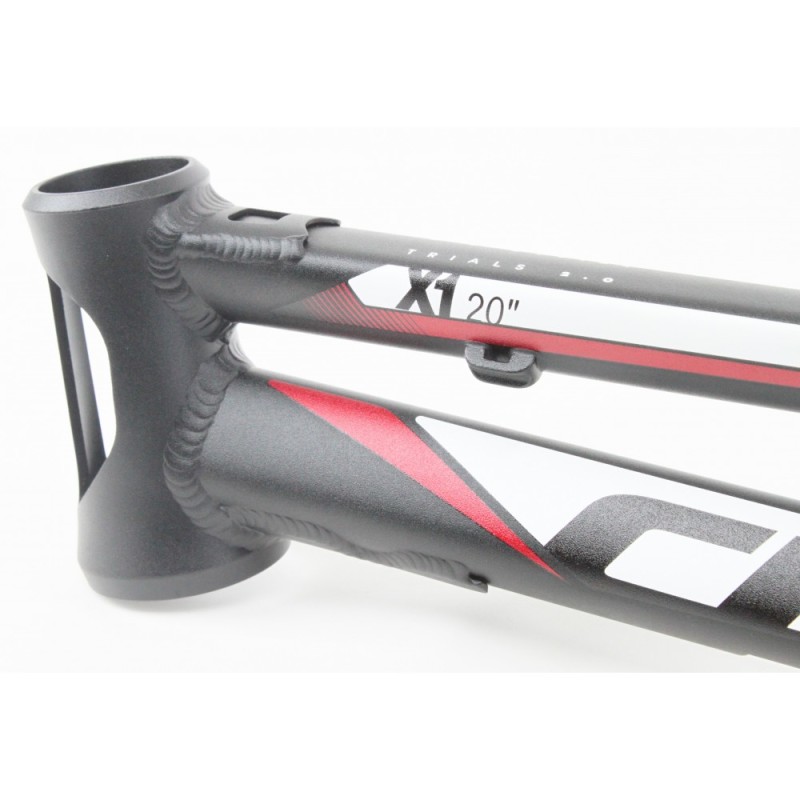

120mm long headtube, re-designed to tapered forks (coming soon), that means that the top cup is 1 1/8” and the bottom cup is 1/5”, improving stiffness and durability into máximum.

Revised thickness on the main tubes to increase strength and still keeping a light weight.

Two custom gusset added in the main tubes with the headtube join to increase strenght and stiffness.

Designed to fit 116mm hubs .

Left dropout is 100% full machined with the Disc Mount integrated (PM), to reduce flex while braking, and also looking great.

Only available in disc brake, still keeping a little brake booster to follow the style from the first production.

Black Anodised finished (sand blasted) with red and White wáter decals.

Available in 1005mm, 970mm and 930mm.

Specifications:

• Weight: 1563g (1005mm), 1446g (970mm), 1364g (930mm)
• Geometry (measured with 370mm x 40º Fork)
• Wheelbase: 1005mm/970mm/930mm
• Chainstay: 350mm/350mm/344mm
• BB high: +84mm/+84mm/+63mm
• Head angle: 72º
• Hub space: 116mm
• BB shell: 68mm
• Headtube: 120mm (Tapered)
• Reach: 600mm/570mm/560mm
