Braih (Spain) - Press Release: With the Braih RC1-R you will live incomparable experiences. With its powerful 1000W * motor and 160Nm of torque, fun is guaranteed.

Unstoppable, is how we can best describe our most radical Braih. Without a doubt, it is your best ally in the most extreme private circuits. Flying for the most demanding routes thanks to its competition setup.

*Product for exclusive use in private spaces. Use not allowed on public roads.

Main features:

  • 184km of range (R200 certification)
  • Smart battery management system via Braih App
  • 6082-T6 aluminum frame made by hand in Barcelona
  • Subframe and front plate CNC machined aluminum
  • Integrated LED headlights for maximum visibility and safety
  • Titanium hardware on sub-frame and shock absorber
  • 7075-T6 aluminum hardware on swingarm and battery
  • LCD color screen with all the necessary information
  • USB connector for charging electronic devices

Technical Specifications:

  • Range: 184km (R200 standard)
  • Chassis: Backbone AL 6082-T6
  • Swingarm: monolink AL
  • Subframe: AL 6082-T6 CNC anodized
  • Mask: AL 5754-T4 CNC anodized with LEDs
  • Fork: FASTACE ALX13RC Coil 37mm 160mm (Compression and Rebound)
  • Shock absorber: FASTACE BDA53RC (Compression and Rebound)
  • Battery: Braih Li-ion | 1254 Wh (26.8Ah)
  • BMS: Smart BMS Bluetooth with Braih APP
  • Charger: Off board 8A, charging time 3.5h

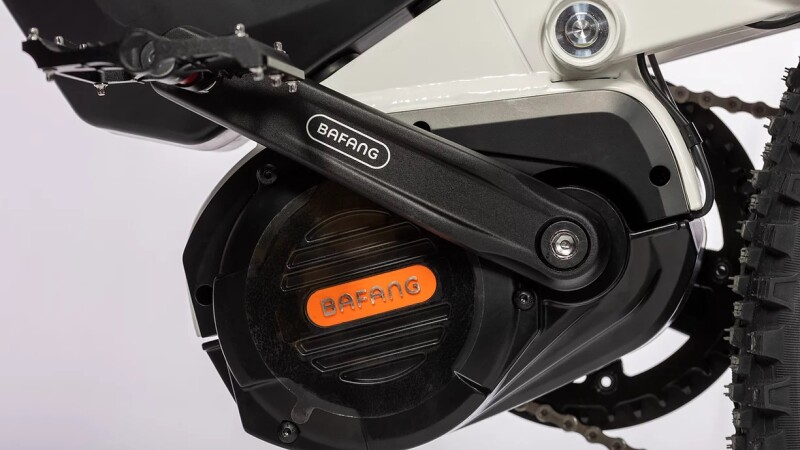

  • Motor: Bafang MM G510 Permanent magnets 48V

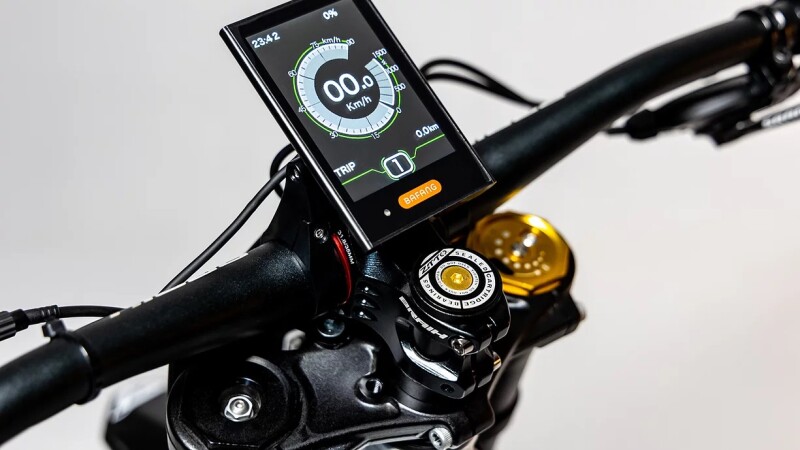

  • Screen: Bafang DP C181 LCD Color + Bluetooth
  • Modes: 9 Modes 250W-1000W
  • Power: 1000W
  • Torque: 160Nm
  • Maximum speed: 45km/h
  • Rear derrailleur: Sram GX1 11V 11-42
  • Shifter: Sram GX1 1 + 1

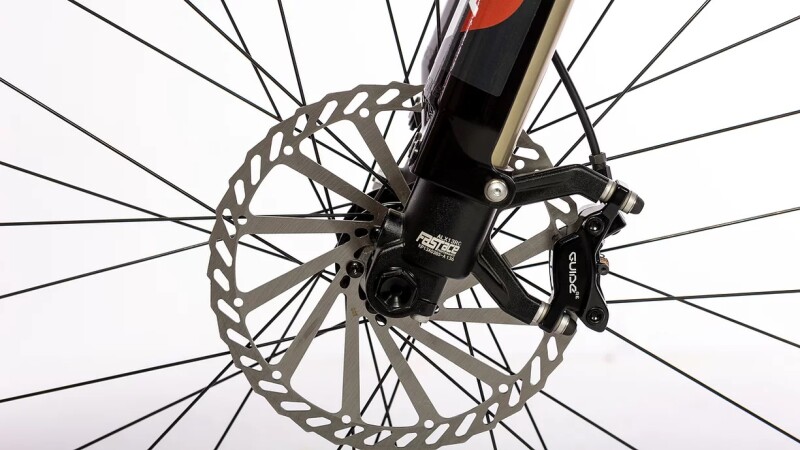

  • Brakes: SRAM Guide RE 4 pistons, 203mm rotor
  • Crank arms: Bafang AL 170mm
  • Wheels 27 ": Match 1 with ARC MT013FA hubs (20x110-12x148)
  • Tires 27.5 ": Michelin Wild AM 27.5x2.6 "
  • Wheels 24 "(Size SM): Match 1 with ARC MT013FA hubs (20x110-12x148)
  • 24 "tires: Hard Razorback 24x3.0 "
  • Handlebar: Braih AL 6061-T6 780mm 31.8mm Rise 35mm
  • Stem: Braih AL 3D Forged CNC 45mm 0º
  • Seatpost: Dropper Zoom SPD-801E (remote lever) 31.6mm
  • Saddle: Selle Montegrappa Liberty XC1410 XXL Made in Italy
  • Pedals: Braih AL CNC Sealed Bearings
  • Mudguard: Yes
  • Homologation: -
  • Warranty: 5 years on frame and 2 years on components
  • Weight: 35kg
