Mondraker (Spain) - 2019 Mondraker Summum Carbon downhill bike.

Summum Carbon Pro Team Technical Specifications:

• Frame: Summum 27´5 Stealth full Carbon, Zero suspension system, 205mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, 12x150mm rear axle, 83mm BSA bottom bracket, MAX. capacity sealed bearings, internal cable routing, ISCG 05. *Geometry kit included
• Sizes: S: 400mm / M: 400mm / L: 400mm / XL: 400mm

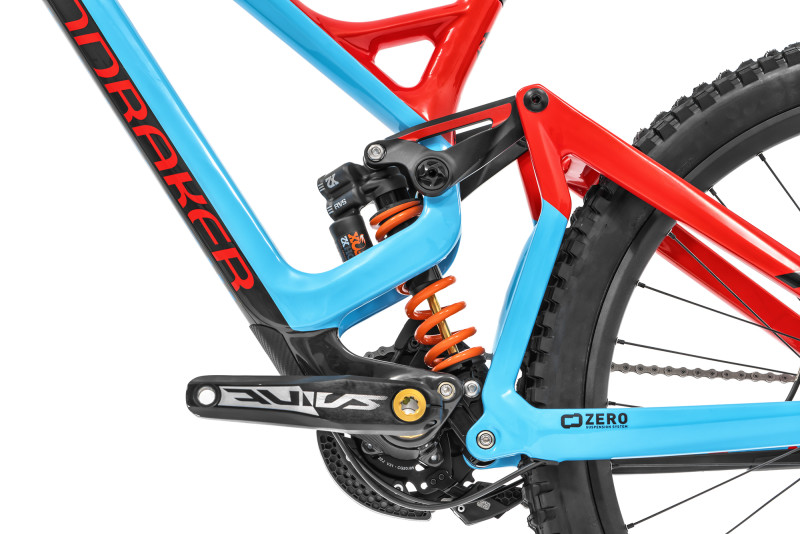

• Rear shock: Fox DHX2 Factory Kashima, 222x70mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring
• Shock setting: Firm compression, light rebound. Spring rate: S size 450 lbs, M size 500 lbs, L/XL size 550 lbs
• Fork: Fox 40 27´5 Float FIT GRIP2 EVOL Factory Kashima, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle. Settings: high and low-speed compression, high and low-speed rebound, air preload
• Headset: Onoff Mercurium 1.5 ZS for 1-1/8” steerer tube, 41x30.15x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 56mm
• Stem: Onoff Stoic DH Integrated FG, 20-30mm adjustable lengt, 31.8mm barbore, 6061 alloy

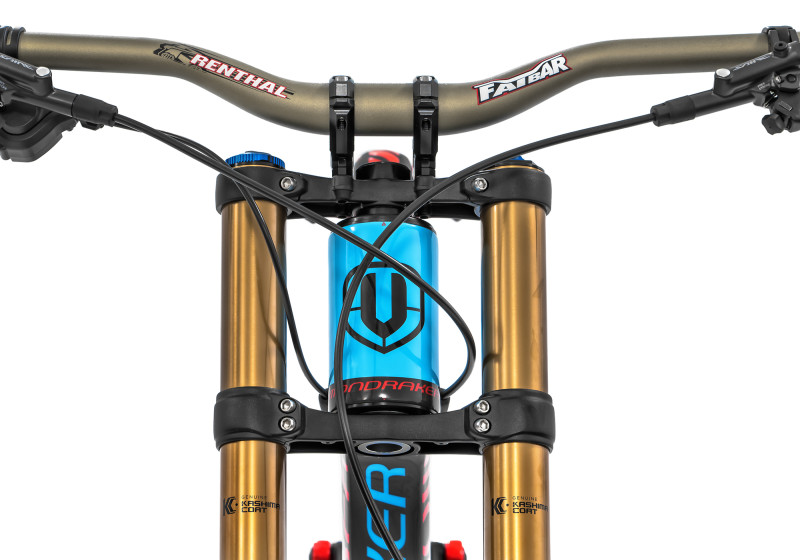

• Handlebar: Renthal Fatbar series 7 alloy, rise: 30mm, width: 780mm, 7º backsweep, 5º upsweep, 31.8mm barbore
• Grips: Renthal, double lock-on, kevlar compound, 130mm
• Seatpost: SDG Micro I-Beam SP-951 Carbon, diameter 31.6mm, length 300mm, micro-adjustment
• Saddle: SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides
• Front brake: Shimano Saint M820, 4-piston caliper, RT86 203mm 2-piece IS 6 bolts rotor with ICE technology, resin pads with cooler
• Rear brake: Shimano Saint M820, 4-piston caliper, RT86 203mm 2-piece IS 6 bolts rotor with ICE technology, resin pads with cooler
• Brake lever: Shimano Saint, ergonomic antiskid lever with servo wave, free stroke and tool less reach adjust
• Rim: DT Swiss FR1950 27’5, 33mm external width, tubeless ready, 32 holes
• Spokes: DT competition
• Front hub: DT 240, 20x110mm, IS 6 bolts
• Rear hub: DT 240, 12X150mm, 36T Ratchet system, IS 6 bolts
• Front tyre: Maxxis Minion DHR II 27’5x2.4, Super Tacky compound, Wire bead
• Rear tyre: Maxxis Minion DHR II 27’5x2.4, Super Tacky compound, Wire bead

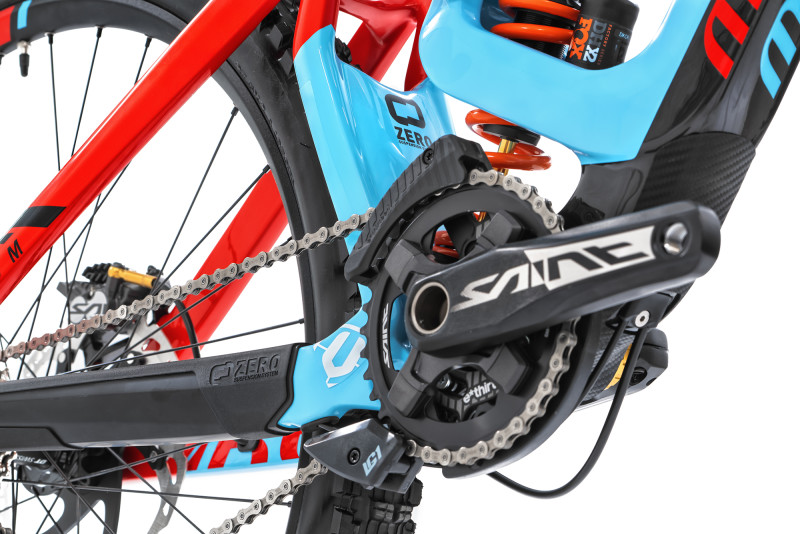

• Crank: Shimano Saint M825 Hollowtech II, 165mm
• Rings: aluminium, BCD 104, 36T
• Bottom bracket: Shimano 83mm
• Pedals: /
• Chain: Shimano HG95, 10s
• Front  derailleur: E.13 LG1R Carbon chain guide, IFD DMB (Direct Mount Bashguard) Gen 2 Stealth Idler, Aluminum hardware, adjustable/replaceable lower armature, polycarbonate, ISCG 05, adjustable upper slider
• Rear derailleur: Shimano Saint RD-M820-SS, 10s, Shadow+, short cage
• Lever: Shimano Saint SL-M820 10s, low friction multi bearing, instant release, multi release, 2-way release
• Sprocket: Shimano CS-HG500-10, 11-25T, 10s
• Hanger: Mondraker M063
• Others: Geometry kit included: chainstay and brake adaptors for 445mm, 450mm, 455mm, 460mm. Steering cups: +/- 1º, +/-2º
• Weight without pedals: 15,600
