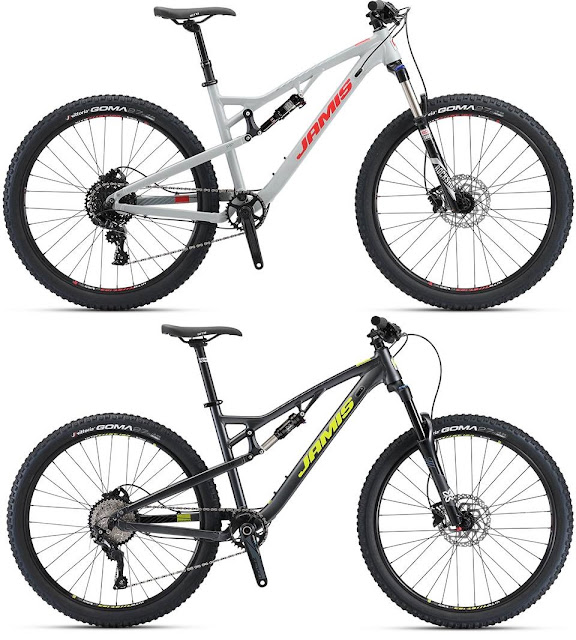

Dakar A1:
Full suspension opens up a whole new world of speed and control off-road. Modernized with 27.5” hoops, this is the frame platform that’s won us numerous industry accolades and Bike of the Year awards. Perfect rigs for the experienced rider who is looking to upgrade to their first dual suspension or for new riders looking for a head start in performance.
Dakar A1 Specifications:
- Frame: Triple-butted 6061 alloy, 120mm travel mp2 suspension, 1.5 - 1 1/8” tapered head tube, asymmetrical chainstays w/12x142mm thru-axle dropouts, internal dropper post routing, ISCG05 chainguide mount, Rock Shox Monarch RL Debon air shock with rebound adjust & lockout, replaceable derailleur hanger, Formula thru-axle
- Fork: Rock Shox Recon RL 27.5", Solo Air spring compression, tapered steerer, lever actuated lockout, external rebound, 32mm stanchions, magnesium lowers, 15x100mm axle, 120mm travel
- Headset: FSA Orbit 1.5 Zero-Stack internal cup, 8mm cone spacer
- Wheels: WTB ST i23 TCS 27.5" tubeless rims, 32H, Formula sealed bearing 15x100mm front & 12x142mm rear 6-bolt disc hubs, stainless spokes
- Tires: Vittoria Goma, 27.5 x 2.25”, folding
- Derailleurs: SRAM GX, 11-speed
- Shift levers: SRAM NX, 1x11-speed
- Chain: KMC X11-1, 11-speed
- Cassette: SRAM 1130, 11-speed, 11-42T
- Crankset: Race Face Aeffect, 32T, 170mm (XS/S), 175mm (M-XL)
- BB Set: Race Face External
- Brakeset: Shimano M396 hydraulic disc, 180mm front & 160mm rear RT26 6-bolt rotors
- Handlebar: Race Face Ride, 35 x 760mm
- Stem: Race Face Ride, 50mm
- Grips: Jamis Lock-On
- Seat Post: KS eTen Integra, 100mm travel, Southpaw remote
- Saddle: WTB Volt Sport
- Sizes: XS (14.5), S (15), M (17), L (19), XL (21)
- Color: Kinetic Grey
- Weight: 31.50lbs
Dakar A2:
Dakar A2 Specifications:
- Frame: Triple-butted 6061 alloy, 120mm travel mp2 suspension, 1.5 - 1 1/8” tapered head tube, asymmetrical chainstays w/12x142mm thru-axle dropouts, internal dropper post routing, ISCG05 chainguide mount, X-Fusion O2 Pro RL air shock with rebound adjust & lockout, replaceable derailleur hanger, Formula thru-axle
- Fork: X-Fusion RC32 RL 27.5", air spring compression, alloy steerer, lever actuated lockout, external rebound, 32mm stanchions, magnesium lowers, QR axle, 120mm travel
- Headset: FSA Orbit 1.5 Zero-Stack internal cup, 8mm cone spacer
- Wheels: WTB ST i23 TCS 27.5" tubeless rims, 32H, Formula QR front & 12x142mm rear 6-bolt disc hubs, stainless spokes
- Tires: Vittoria Goma, 27.5 x 2.25”, folding
- Derailleurs: Shimano Deore Shadow Plus, 10-speed
- Shift levers: Shimano Deore, 1x10-speed
- Chain: KMC X10-1, 10-speed
- Cassette: Shimano HG500, 10-speed, 11-42T
- Crankset: SR Suntour Zeron, 32T, 170mm (XS/S), 175mm (M-XL)
- BB Set: SR Suntour External
- Pedals: MTB alloy platform
- Brakeset: Shimano M315 hydraulic disc, 180mm front & 160mm rear RT26 6-bolt rotors
- Handlebar: Race Face Ride, 35 x 760mm
- Stem: Race Face Ride, 50mm
- Grips: Jamis Lock-On
- Seat Post: Race Face Ride, 31.6 x 400mm
- Saddle: WTB Volt Sport
- Sizes: XS (14.5), S (15), M (17), L (19), XL (21)
- Color: Charcoal
- Weight: 30.50lbs
