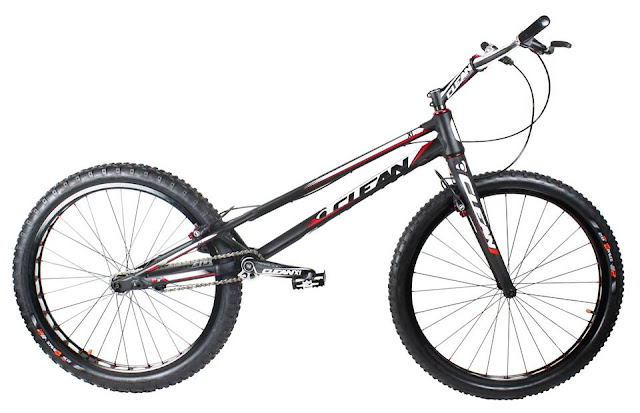

New Clean X1 26" WC Edition Trials Bike



Clean Trials (Spain) – Clean Trials launched the New X1 WC Edition trials bike with X2 26” wheels, carbon handlebar and carbon fork.

Highlights:
  • Frame constructed in high quality 6061 T6 + 7075 T6 aluminium alloy
  • Tapered headset, being compatible with our carbon fork if you want to update your bike
  • Frame and artwork 100% redesigned
  • CNC machined vertical dropouts
  • Integrated chain tensioner
  • CNC machined brake booster, perfectly integrated on the seatstays

Features:
  • Frame: Clean X1. Aluminio 6061 T6 + 7075 T6
  • Fork: Clean X2. Aluminio 7005 T6. Tapered. HS
  • Handlebar: Clean 107 Carbon Fiber
  • Grips: Clean Foam. Extrathin
  • Stem: Clean 145x25
  • Headset: Clean Tapered. Superlight. Semi integrated
  • Hubs: Clean Cone Hubs
  • Brakes: Clean T13 + Magura cyclinders
  • Clamps: Clean Waserless
  • Bottom Bracket: ISIS 170mm Cranks + BSA 128mm
  • Pedals: Clean Single Cage
  • Chain: KMC 610HX
  • Chain tensioner: Clean Integrated. 7075 CNC plate. 11T plastic wheels
  • Rims: Clean High Profile
  • Spokes: 1.8mm Black
  • Nipples: 16G Aluminium Red
  • Freewheel: 108.9 Threaded
  • Sprocket: Clean 15T
  • Front tyre: Monty Pro Race
  • Rear tyre: Monty Pro Race
  • Front tube: CST
  • Rear tube: CST
  • Weight: 8.5kg

Geometry:
  • Wheelbase: 1085mm
  • BB high: +79mm
  • Chainstay: 380mm
  • Head angle: 72º
  • Reach: 670mm









For more information about the New X1 26" WC Edition 2017 Trials Bike from Clean Trials click here.
