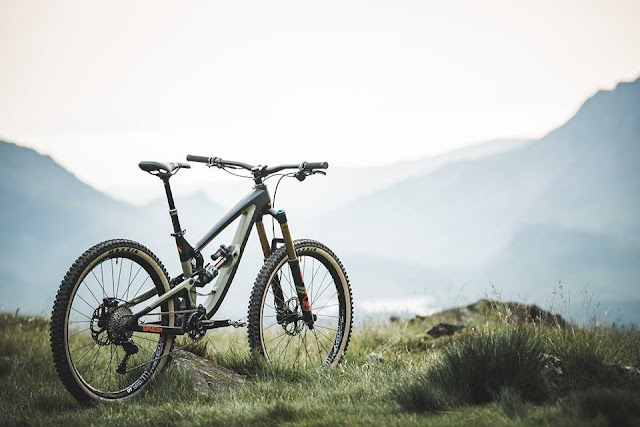

Saracen (UK) – "Whether doing big mountain epics or turning laps at your local, the Ariel takes it all in its stride and still asks for more", stated Saracen.

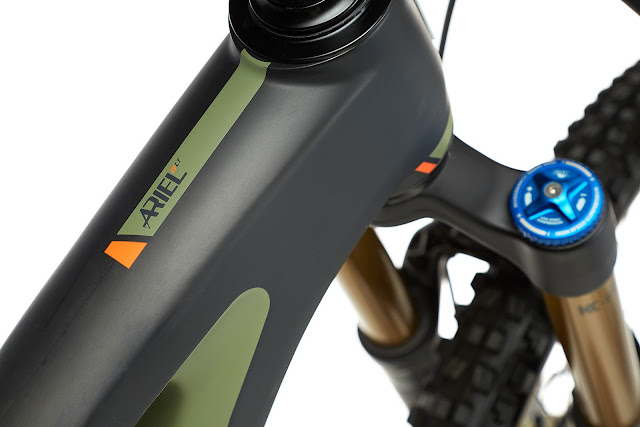

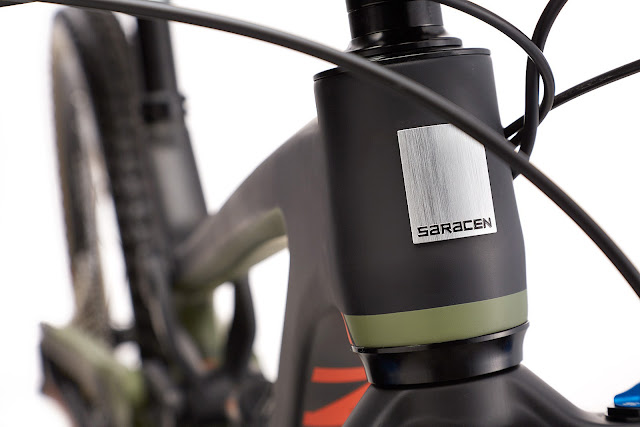

Using a 24T/40T/3K Toray UD Carbon blend on the front triangle and a Toray UD Carbon swingarm keeps weight low whilst not compromising on durability. "As seen on the Myst, the custom headtube allows the adjustment of the front centre +/-5mm in order to perfect the ride position. Internal cable routing and a specific Di2 battery holder in the downtube keep the bike looking as fresh as possible whilst still being practical", they added.
"Full Shimano 1 x 11 speed groupset with M8000 XT brakes taking care of stopping duties. DT Swiss M1900 wheelset wrapped in Maxxis Minion DHF II tyres and finished off with carbon Enve bars really help this big hitter stand out from the crowd", they concluded.
Specifications:
- Frame - 24T/40T/3K Toray UD carbon blend / Toray UD carbon swingarm / custom headtube with adjustable front centre plus-minus 5mm / 37mm main pivot bearings / 28mm linkage bearings / UD carbon linkage / signature TRL suspension design / internal cable routing / 12 x 148mm Boost dropout system / 165mm travel
- Fork - Fox 36 Float Factory / Kashima / 170mm travel / FIT HSC/LSC / tapered steerer / 15QRx110 Boost

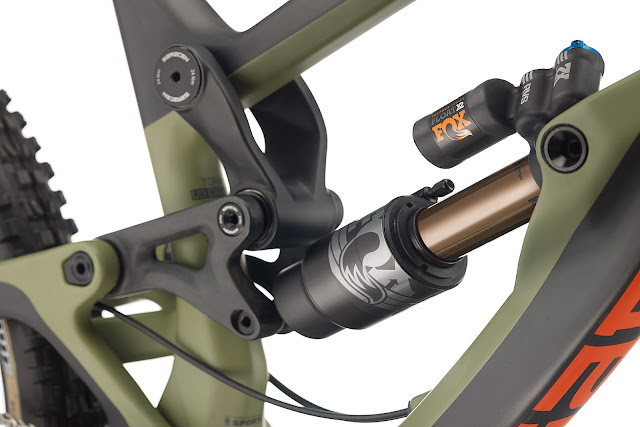

- Rear Shock - Fox Float X2 Factory / Kashima / EVOL / 3 position adjust
- Shifters - Shimano SLX M7000 Rapidfire Plus 1x11 speed
- Rear Derailleur - Shimano Deore XT M8000 Shadow Plus
- Front Derailleur - MRP 1x
- Chainset - Shimano XT M8000 32T / Boost / 170-175mm
- Cassette - Shimano M7000 11 speed cassette 11-46T
- Chain - KMC X11EL
- Bottom Bracket - Shimano BB-MT800B
- Rims - DT Swiss M1900 Spline 30
- Hubs - DT Swiss M1900 Spline 30 / Saracen Taper-Lock axle
- Spokes - DT Swiss Double-butted
- Tyres - Maxxis Minion DHF II 3C/EXO/TR / 27.5 x 2.3&qout; front / rear with custom tan walls + extra set Maxxis Minion DHR II 3C/EXO/TR / 27.5 x 2.3
- Calipers - Shimano M8000 180/180mm
- Levers - Shimano M8000
- Heatset - Saracen off-set headset / 0mm / 5mm
- Bar - Enve DH carbon bar / 800mm wide / 23mm rise / 5 degree up bend / 9 degree back bend
- Stem - Saracen 6061 CNC alloy / 45mm / A-head / 0 degree rise / 31.8mm clamp
- Grips - Saracen lock-on grip
- Saddle - Kore Fuze II
- Seatpost - JD YSP07L dropper post / 150mm travel / internal cable routing / 30.9mm (125mm on S size)
