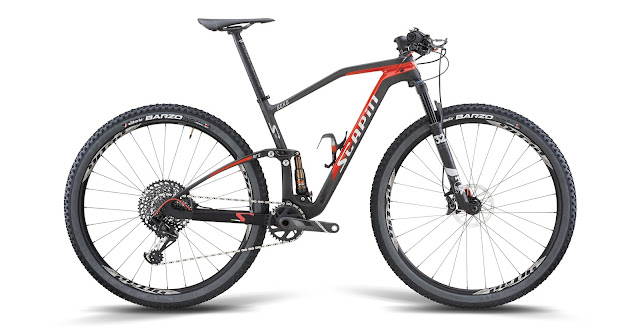

New 2018 Geko MTB Bike from Scapin



Scapin (Italy) – "Do not expect it to lose contact with the ground - it's against its nature. Geko is the parent model of Scapin's 29" full-suspended family. It is a compact geometry MTB that will meet all the expectations of both cross country and Gran-Fondo/Cyclosportive specialists", stated Scapin.

A short, 435mm stay and a compact-sized top tube help to make the bike wheelbase shorter, improving smooth riding in the most technically challenging routes.

To increase Geko's stability, Scapin has optimised its centre of gravity thanks to 50mm BB offset combined with a 74° seat tube angle. Pedalling in a sitting position is made easier even on extremely steep slopes - keeping the front wheel firmly on the ground and avoiding loss of grip. By contrast, the 51mm fork is less verticalised (70°) to better deal with ground bumpiness downhill.

The suspension system works according to a progressive compression curve, which enhances vehicle rigidity in the absence of significant impact stress.

The frame design is clearly inspired by Oraklo, this is especially obvious in the top tube and down tube tilt angles. The wiring is fully integrated.

SX X1E Features:
  • Frame: Carbon Monocoque with RFS (Toray T1000, T800, M40J) - Travel 95mm
  • Rear Shock: Fox Float DPS Factory - Remote Lockout
  • Fork opt.: Rock Shox Reba RL 29" DBF - 100mm, TAP, 15mm, B110mm
  • Fork opt.: Fox Float R32 F29 Performance SC - 100mm, TAP, 15mm, B110
  • Fork opt.: Fox Float R32 F29 Factory SC - 100mm, TAP, 15mm, B110
  • Fork RS1: Rock Shox RS1 - 100mm, TAP, 15mm B110
  • Group Set: Sram XX1 Eagle 12S.
  • Crank Set: Sram XX1 Eagle (34T)
  • Bottom Bracket: Sram Press Fit
  • R. Der: Sram XX1 Eagle
  • Shifters: Sram XX1 Eagle Trigger
  • Brakes: Shimano XTR BR-M9000
  • Disc: Shimano RT86S
  • Cassette: Sram XG 1299 (10/50)
  • Chain: Sram PCXX1E
  • Seatpost: Ritchey WCS BLACK
  • Seat post Opt.: Rock Shox Reverb Stealth - Remote Lockout
  • Saddle: San Marco Regale FX Carbon
  • Stem: Ritchey WCS C-220 73D BB Black
  • Handlebar: Ritchey WCS BLACK 2X 9D 720mm BB Black
  • Bottle: Scapin Elite Fiume Biodegradable
  • Bottle Cage: Scapin Paron Race
  • Wheels/Tires opt.: ZTR Crest - Miche 966 Hubs | F:15mm R:12mm, B148 / Vittoria Barzo TNT
  • Wheels/Tires opt.: Mavic Crossmax Elite | F:15mm R:12mm, B148 / Vittoria Barzo TNT
  • Wheels/Tires opt.: Vittoria Reaction SL | F:15mm R:12mm, B148 / Vittoria Barzo TNT
  • Wheels/Tires opt.: ZTR Crest - Miche 966 Hubs | F:15mm R:12mm, B148



Other Versions:
  • SX 01E
  • S2 E
  • S3 S
  • SG XE
  • S8 S

For more information about the New 2018 Geko MTB Bike from Scapin click here.
